Signal Number Plans

These are Adobe Acrobat PDF files. If you don't have Adobe Acrobat Reader installed on your computer you can get a free download of the latest version from the Adobe website . When checked during January 2015, it had reached v11 and the download size was just under 50MB.

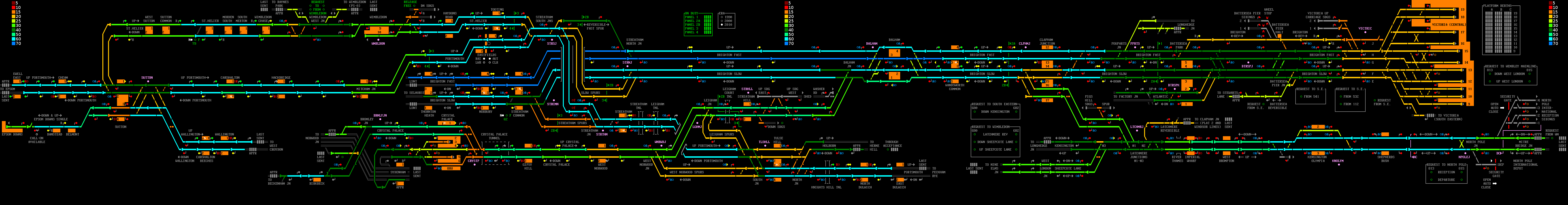

Speed Limit Diagram

Hot Keys

Keys 1 to 8 scroll along the centre of the panel from left to right. Keys 9 and 0 scroll to the Crystal Palace and Kensington Olympia areas respectively.

Key	Area
V	Victoria
K	Kensington Olympia
C	Clapham Junction
B	Balham
S	Streatham Junction complex
W	Wimbledon
E	Epsom Downs / Sutton
P	Crystal Palace
T	Tulse Hill

Signal Box Prefix Codes

Code	Box
L	London Bridge*
T	Three Bridges*
VS	Victoria South Eastern*
W	Wimbledon ASC*
WM	Wembley Mainline*

*Fringe box, signals not controlled in this simulation.

Non-prefixed signal are controlled by Victoria Central (VC)

Platform Lengths

Location	Platform	Length
Balham	1	183
	2	183
	3	163
	4	163
Banstead	SGL	163
Battersea Park	1	92
	2	150 (Down)
		85 (Up)
	3	154
	4	158
	5	164
Battersea Pier Halt	SGL	3
Belmont	SGL	159
Birkbeck	SGL	158
Carshalton	1	173
	2	179
Carshalton Beeches	All	167
Cheam	1	183
	2	182
Clapham Junction	12	245
	13	253
	14	215
	15	174
	16	171
	17	108
Crystal Palace	1	164
	2	161
	3	178
	4	192
	5	178
	6	192
East Dulwich	All	165
Epsom Downs	SGL	167
Ewell East	1	159
	2	160
Gipsy Hill	1	157
	2	158
Hackbridge	1	155
	2	158
Haydons Road	1	164
	2	159
Imperial Wharf	All	85
Kensington Olympia	2	323
	3	190
London Victoria	9	269
	10	248
	11	248
	12	248
	13	246
	14	247
	15	259
	16	251
	17	247
	18	318 (Full)
		254 (To VC497)
	19	318 (Full)
		253 (To VC495)
Mitcham Eastfields	All	160
Mitcham Junction	1	164
	2	152
Morden South	1	161
	2	158
Norbury	1	201
	2	201
	3	201
	4	183
North Dulwich	1	162
	2	168
Shepherds Bush	Down	150
	Up	94
South Merton	1	164
	2	162
St. Helier	1	163
	2	162
Streatham	1	187
	2	189
Streatham Common	1	169
	2	167
	3	165
	4	163
Streatham Hill	1	183
	2	184
Sutton	1	249
	2	251
	3	183
	4	184
Sutton Common	1	158
	2	160
Thornton Heath	1	186
	2	202
	3	202
	4	184
Tooting	1	164
	2	157
Tulse Hill	1	163
	2	164
	3	164
	4	161
Wallington	All	161
Wandsworth Common	1	181
	2	181
	3	181
	4	155
West Brompton	All	90
West Norwood	1	145
	2	161
West Sutton	1	157
	2	156
Wimbledon	9	160
	10	85
Wimbledon Chase	1	159
	2	158
