Authorising trains to pass Signal 116 at danger 21/01/2012 at 06:21 #27843 | |
UKTrainMan
![]() 1803 posts |
Earlier on in my solo game of the 2012 timetable, Track Circuit T140, which is the overlap TC for Signal 111, failed. Luckily for me I found there was enough gaps available to allow me to route trains around it via the Up Slow, which I did without a problem for a while. Unfortunately, there came the perhaps inevitable time when I needed to send a train via the Up Fast, over the TCF. Once the train on the Up Fast had passed Signal 141, I used F11 Incident Control Panel -> Trains tab and, for something a little different, selected the Stop at next signal and report to signalbox option. I already had both points at Camden South Jn 'keyed' and 'locked' (reminder applied). As the train occupies TC T202, the train comes to a halt (basically stopping over Camden South Jn). Checking F2, it flits between "Run out of valid track/Moving at 0mph/Stopped at signal", and just stays doing that. Issue is easily resolved, no problems there (just change the option to Keep going and milliseconds later the train will occupy TC T139 as per normal and continue on it's merry way into Euston. I note the fact that the train fills/occupies TC T202 different to how it fills/occupies TC T201 - with T202 it seems to fills/occupies the whole of it, but with T201 it only fills/occupies the route it is taking. Bug? Thanks in advance for reply/replies. Any views and / or opinions expressed by myself are from me personally and do not represent those of any company I either work for or am a consultant for. Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 08:44 #27846 | |
Firefly
![]() 521 posts |

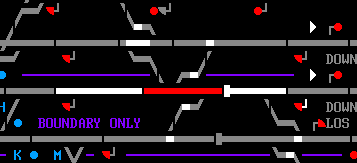

Quote:I note the fact that the train fills/occupies TC T202 different to how it fills/occupies TC T201 - with T202 it seems to fills/occupies the whole of it, but with T201 it only fills/occupies the route it is taking.It's known as track flooding and it's completely correct. If there's a route set over a set of points only the sections of track within the route will light, if however there's no route set the system has no way of knowing which sections of track should be illuminated so it floods the whole lot. This should also happen in overlap track circuits if a train SPAD's despite the fact that you have route lights lit. You can play around with this to see for yourself. Occupy and track and it will flood. ![]() Then set a route over it and only the section in the line of route shows occupied. ![]() Post has attachments. Log in to view them. Last edited: 21/01/2012 at 08:46 by Firefly Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 09:05 #27848 | |
Peter Bennet
![]() 5376 posts ![]() |
When we were at Doncaster box we noticed that the Newark crossing, I think it was, floods as a matter of course whenever a train crossed. Peter I identify as half man half biscuit - crumbs! Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 09:08 #27849 | |
Late Turn
![]() 697 posts |
" said:This should also happen in overlap track circuits if a train SPAD's despite the fact that you have route lights lit. Just recreated the circumstances described by UKTM, and 201 does indeed illuminate normally despite having no route set through it - just the overlap from the signal in rear. The following TC, 202, is beyond the end of the overlap and floods as expected and described. Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 12:58 #27867 | |
clive
![]() 2766 posts |
" said:As the train occupies TC T202, the train comes to a halt (basically stopping over Camden South Jn). Checking F2, it flits between "Run out of valid track/Moving at 0mph/Stopped at signal", and just stays doing that.It's not a Euston bug, it's in the core code. I can see the code doing the wrong thing in this case, but figuring out the right thing will be a bit harder. Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 13:08 #27869 | |
clive
![]() 2766 posts |
" said:When we were at Doncaster box we noticed that the Newark crossing, I think it was, floods as a matter of course whenever a train crossed.My photos don't show it, but my memory is that there was a quick flicker of the ECML track circuit indication when a train went across on the Castle line, but no flicker on there when a train went along the ECML. Each of the four tracks has a single track circuit shown covering the entire crossing, but I believe that one of the two lines actually uses axle counters. The Up ECML TC extends back to signal 96; the down ECML one extends back to the SPADI, and includes the trailing crossover. Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 15:06 #27877 | |
Stephen Fulcher
![]() 2055 posts |
To track circuit that crossing using conventional DC track circuits on all four lines would be extremely complicated. I am surprised they have not got axle counters on all four roads now.
Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 15:46 #27889 | |
Firefly
![]() 521 posts |
Quote:Firefly wrote:Yep in the real world TC 201 would also flood because there's no route set through it. Log in to reply |
Re: Authorising trains to pass Signal 116 at danger 21/01/2012 at 19:40 #27911 | |
Josie
![]() 310 posts |
" said:" said:Is this the same/similar problem with 'pass next signal' as I've mentioned before? (I can't remember which of the three options I'd chosen in that case.)As the train occupies TC T202, the train comes to a halt (basically stopping over Camden South Jn). Checking F2, it flits between "Run out of valid track/Moving at 0mph/Stopped at signal", and just stays doing that.It's not a Euston bug, it's in the core code. I can see the code doing the wrong thing in this case, but figuring out the right thing will be a bit harder. Log in to reply |
