The Real Feltham Panel

You are here: Home > Forum > Simulations > Timetables > Feltham > The Real Feltham Panel

Page 2 of 2

The Real Feltham Panel 27/04/2020 at 20:00 #126379
clive
Avatar
2789 posts 		headshot119 in post 126367 said:

Which way round a sim is will have nothing to do with a map, take Wembley mainline, Euston is on the right as that's where it is on the real panel. Rugby on the other hand has Euston towards the left as that's how the real box has it.
Actually, Euston has Euston on the left.

Some old timers may remember when King's Cross got turned around (the diagrams I supplied Geoff with have KX at the left end, while the panel has it at the right end). I recall Geoff asking me one day:

"How can I work out which version of King's Cross [name] has got?"
"Which way round is it?"

(I wrote a script to turn the internals around, so things like subroute identifiers are all back to front.)
Log in to reply
The Real Feltham Panel 27/04/2020 at 20:07 #126380
headshot119
Avatar
4869 posts 		clive in post 126379 said:
headshot119 in post 126367 said:

Which way round a sim is will have nothing to do with a map, take Wembley mainline, Euston is on the right as that's where it is on the real panel. Rugby on the other hand has Euston towards the left as that's how the real box has it.
Actually, Euston has Euston on the left.

Some old timers may remember when King's Cross got turned around (the diagrams I supplied Geoff with have KX at the left end, while the panel has it at the right end). I recall Geoff asking me one day:

"How can I work out which version of King's Cross [name] has got?"
"Which way round is it?"

(I wrote a script to turn the internals around, so things like subroute identifiers are all back to front.)
You've proved the point quite nicely, as they flipped Euston over when it moved to Wembley.

Manchester Oxford Road is another example, it got flipped when it moved into Manchester ROC
"Passengers for New Lane, should be seated in the rear coach of the train " - Opinions are my own and not those of my employer
Log in to reply
The Real Feltham Panel 27/04/2020 at 20:28 #126381
TylerE
Avatar
149 posts 		And then there is, at least, Cardiff, where Right is East, and Left West, but N/S are flipped.
Log in to reply
The Real Feltham Panel 27/04/2020 at 20:40 #126382
jc92
Avatar
3685 posts
Online 		there's loads where SimSig has the orientation "wrong" compared to real life, normally where there's multiple smaller boxes involved.

Barnsley for instance is upside down compared to the real panel, but fits onto Sheffield's correctly oriented layout.
"We don't stop camborne wednesdays"
Log in to reply
The Real Feltham Panel 27/04/2020 at 20:48 #126384
9pN1SEAp
Avatar
1180 posts 		And the SwinDid simulation has 2/3 of the panels the wrong way up
Jamie S (JAMS)
Log in to reply
The Real Feltham Panel 27/04/2020 at 22:37 #126387
DaveHarries
Avatar
1285 posts 		9pN1SEAp in post 126384 said:
And the SwinDid simulation has 2/3 of the panels the wrong way up :)

And the wrong way round as well: Chippenham is on the right-hand side of the panel, not the left as in SimSig.

Dave
Log in to reply
The Real Feltham Panel 28/04/2020 at 12:14 #126397
tynie123
Avatar
234 posts 		I just have lots of Sticky notes point out the loop , Malden to Waterloo etc.
Post has attachments. Log in to view them.
Last edited: 28/04/2020 at 12:29 by tynie123
Reason: None given
Log in to reply
The Real Feltham Panel 28/04/2020 at 12:28 #126398
clive
Avatar
2789 posts 		TylerE in post 126381 said:
And then there is, at least, Cardiff, where Right is East, and Left West, but N/S are flipped.
Really? Why on earth would they do that - it means you have to say "on your right" when the diagram says something is on their left.

Mind, Cardiff was the place where there were non-existent points on the diagram.
Log in to reply
The Real Feltham Panel 28/04/2020 at 16:01 #126400
i26
Avatar

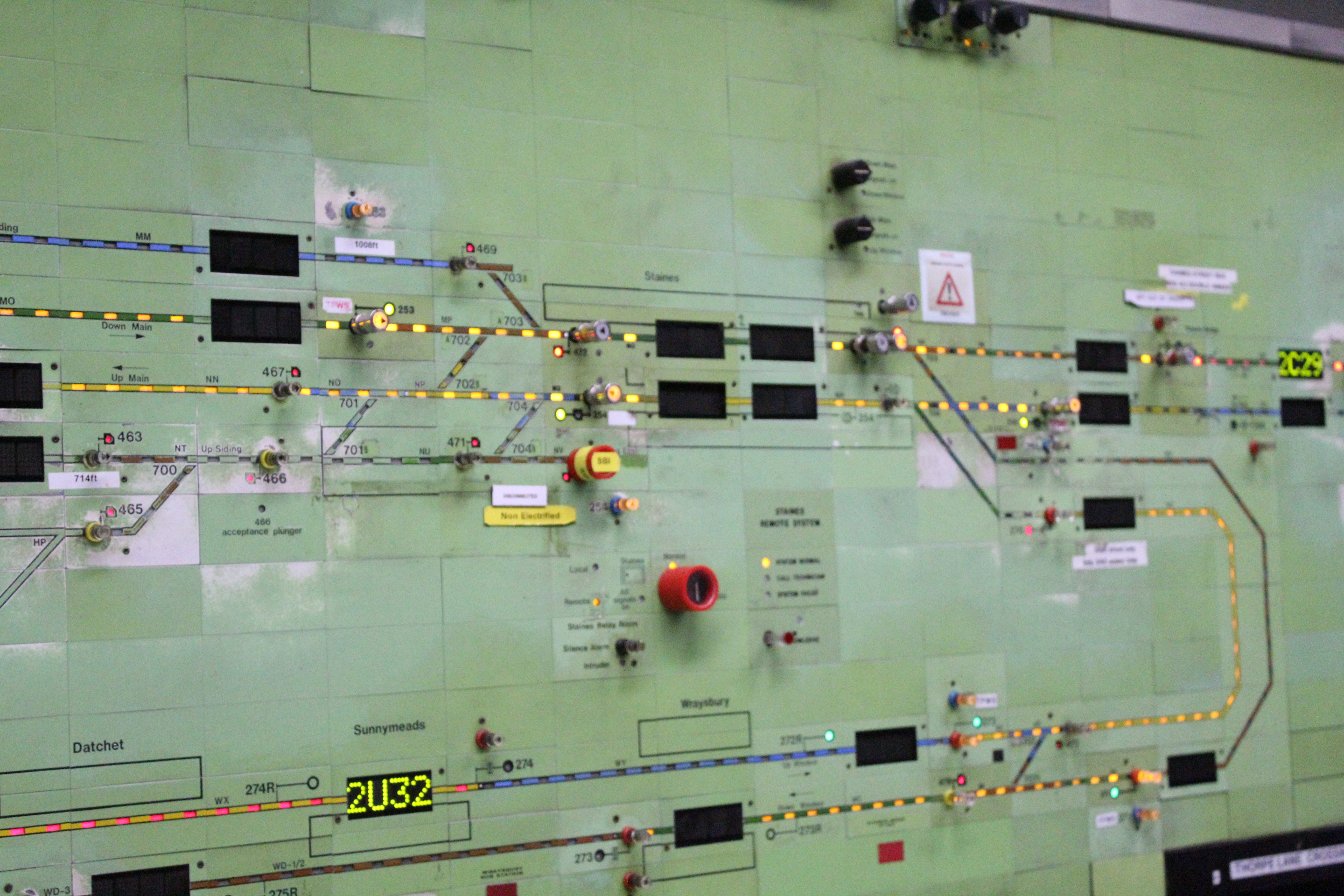

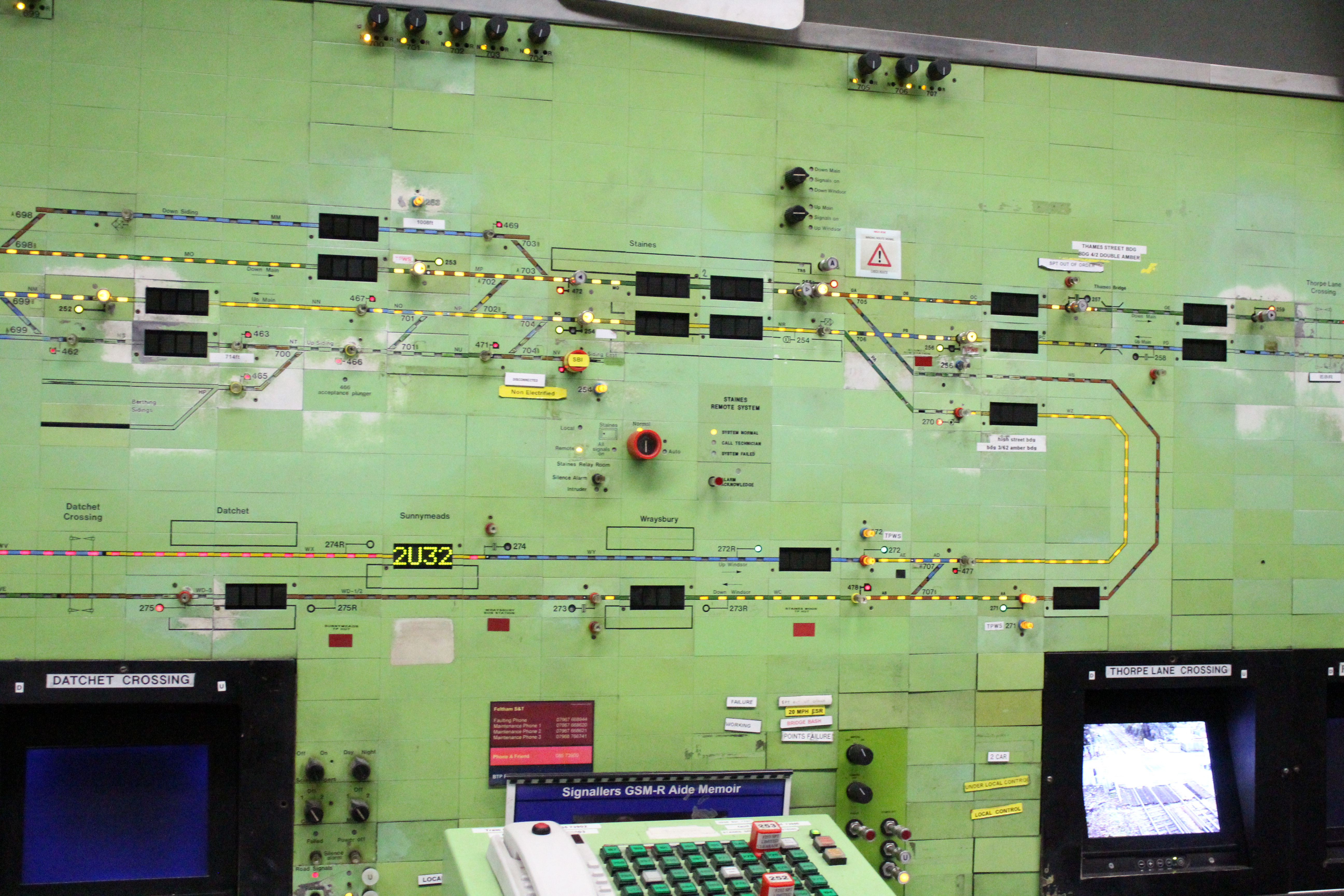

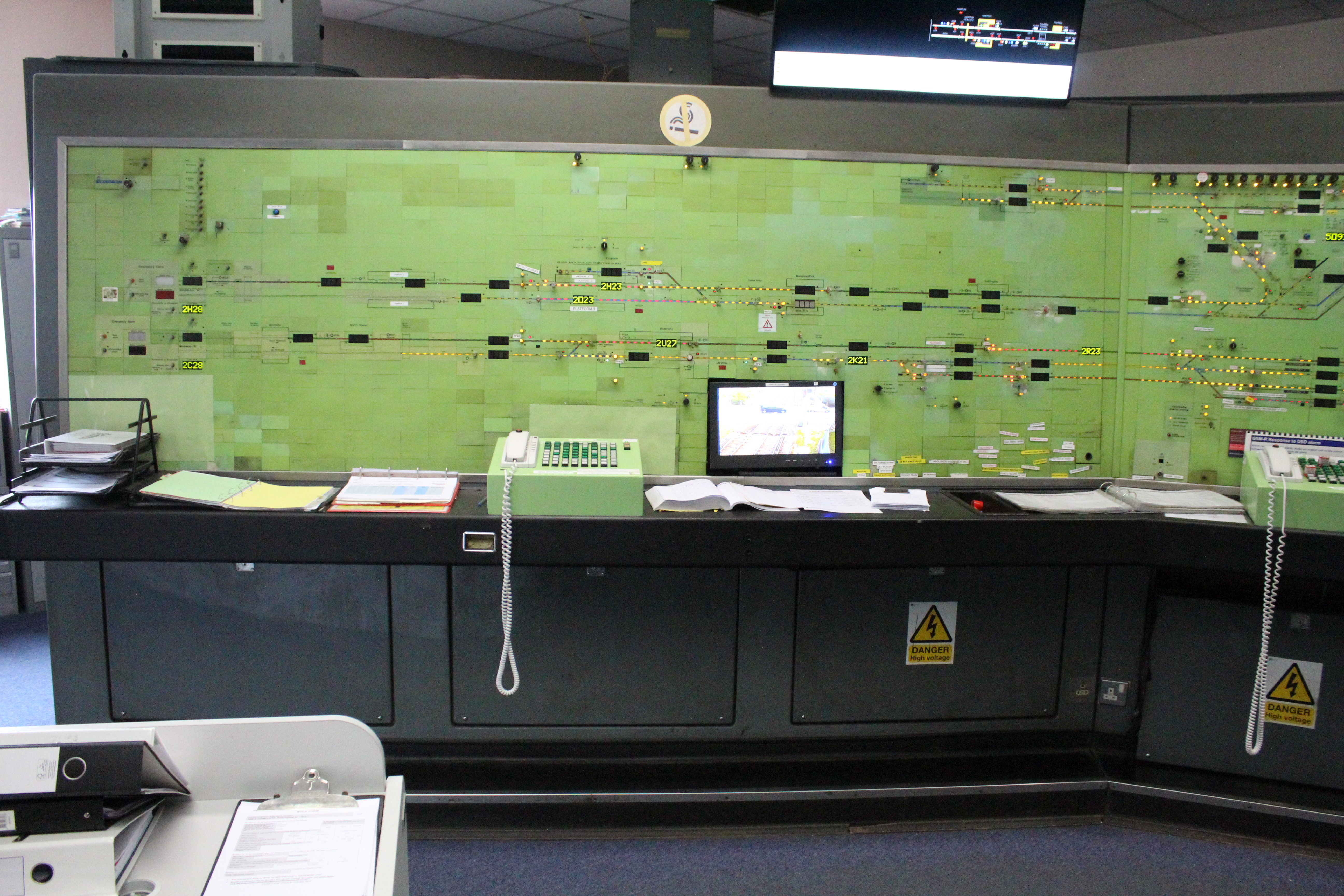

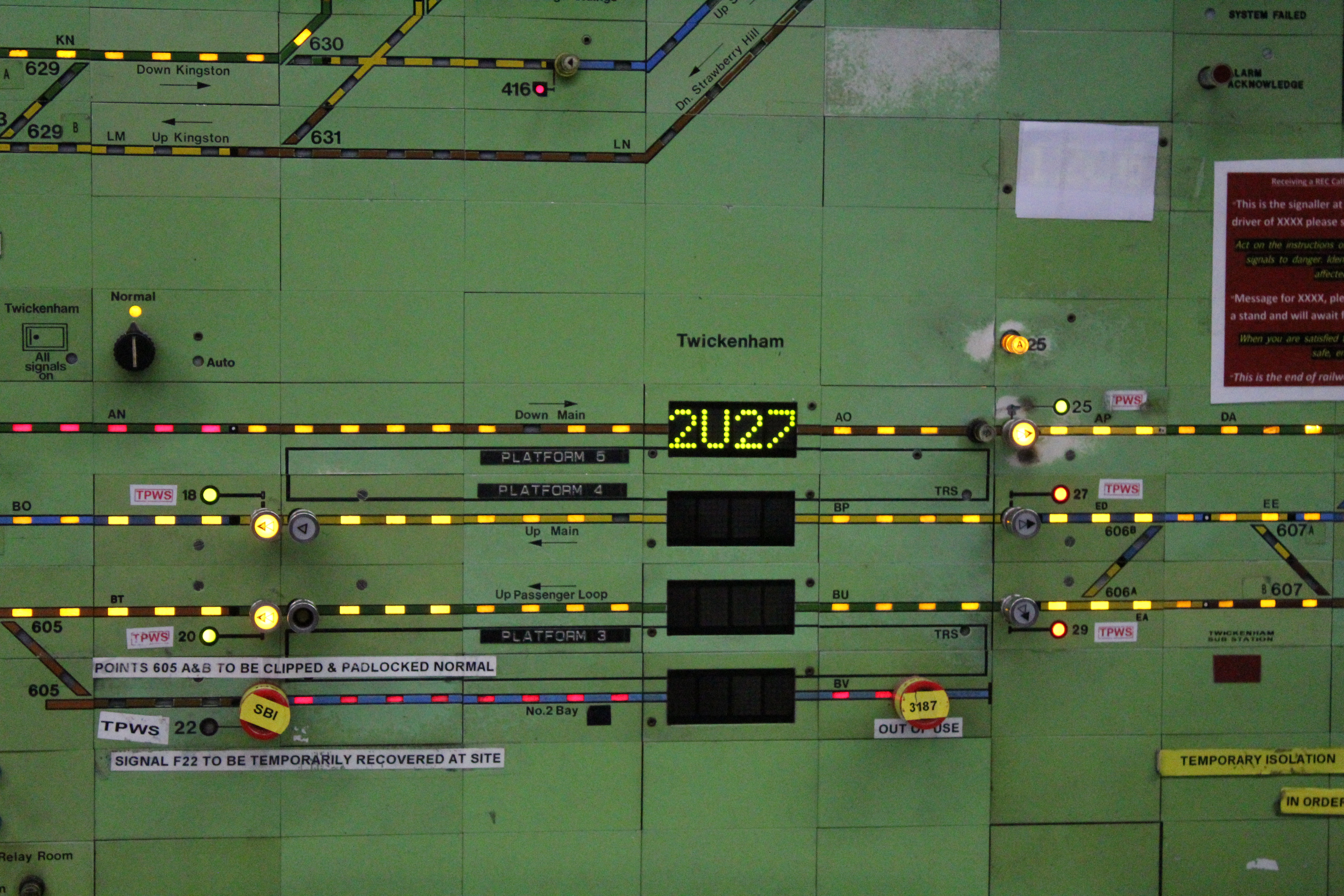

308 posts 		Some pics of Feltham panel just before Christmas.
Post has attachments. Log in to view them.
Log in to reply
The following user said thank you: whitetigger
The Real Feltham Panel 28/04/2020 at 16:03 #126401
i26
Avatar

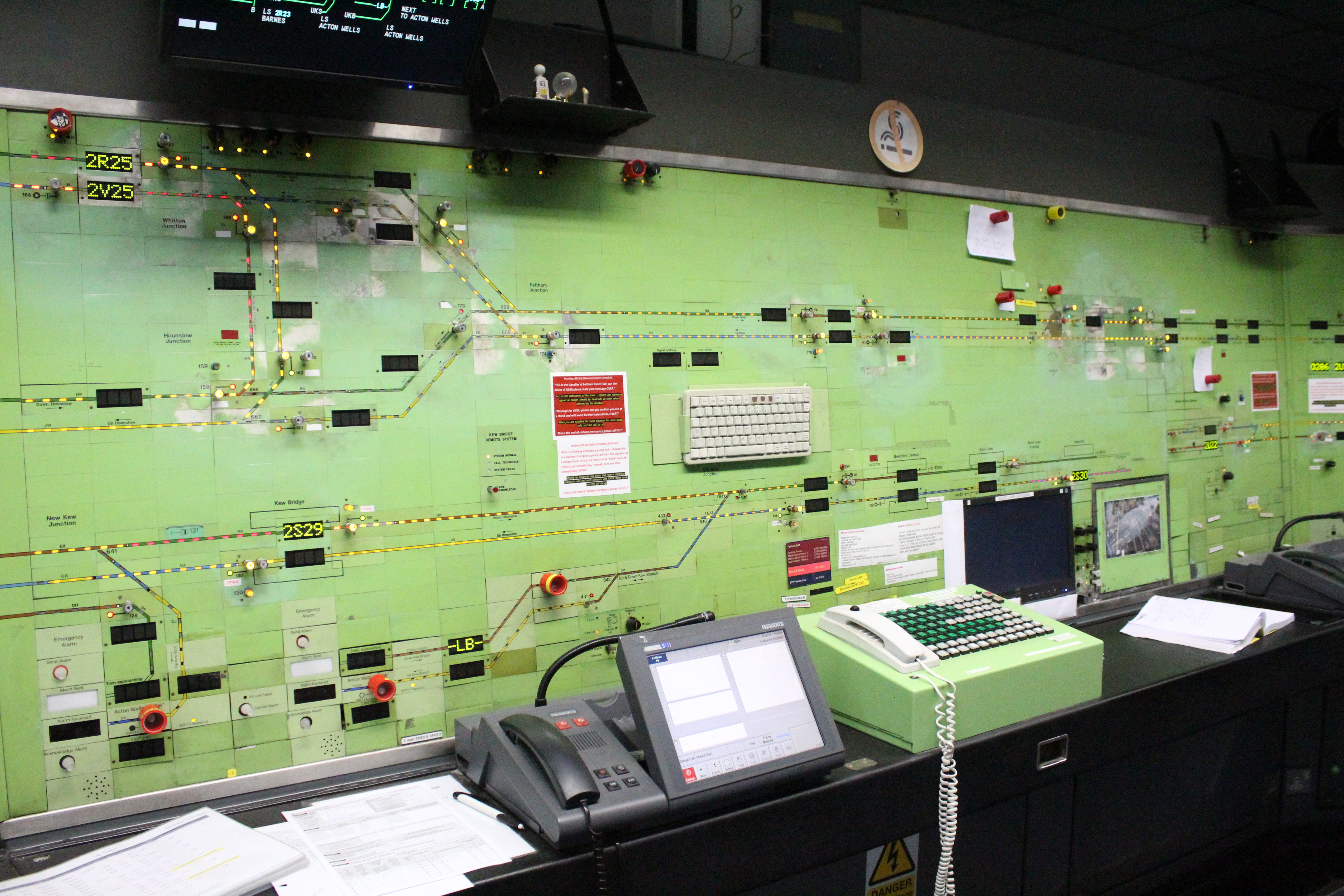

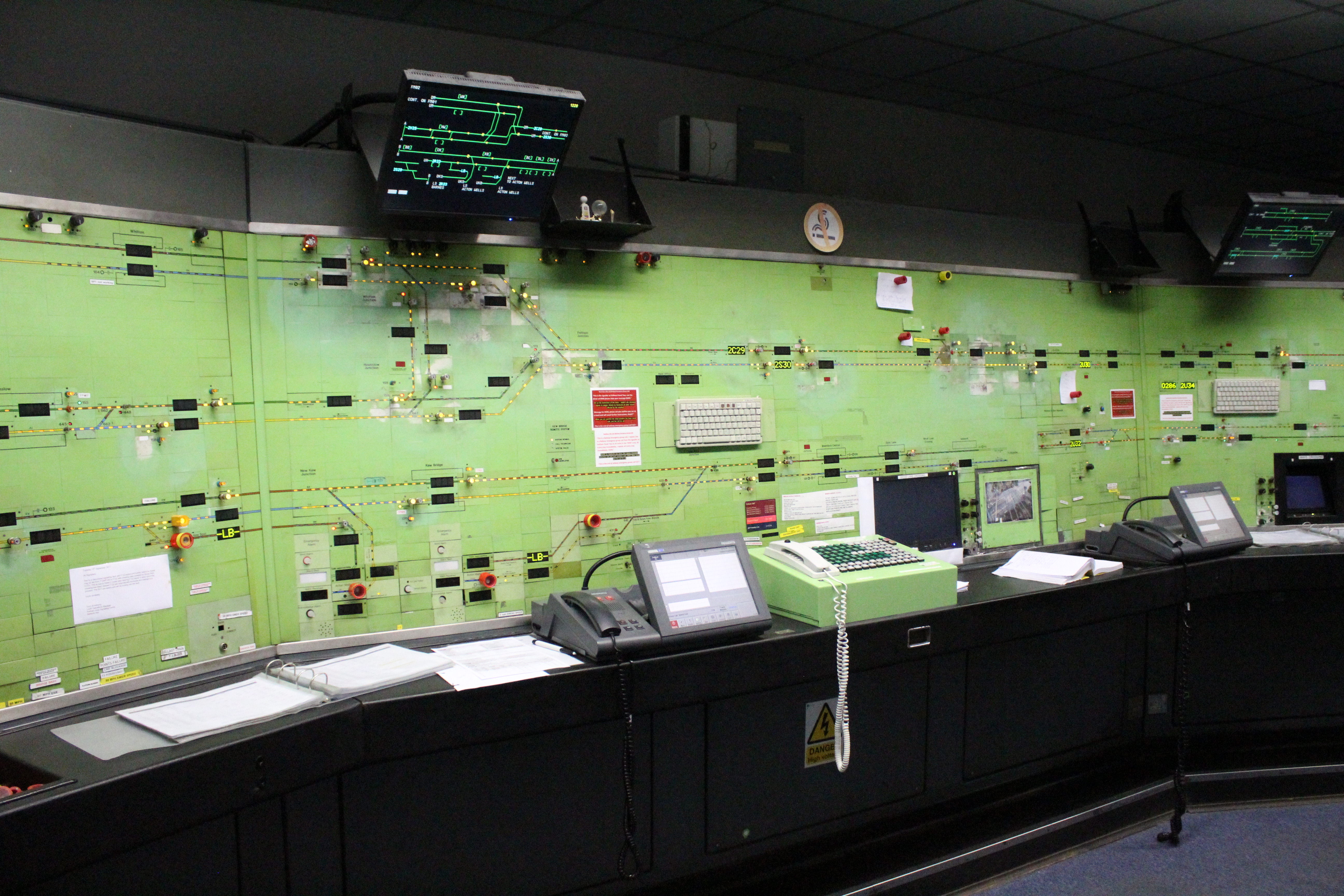

308 posts 		Some more.
Post has attachments. Log in to view them.
Log in to reply
The following user said thank you: whitetigger
The Real Feltham Panel 28/04/2020 at 16:06 #126402
i26
Avatar

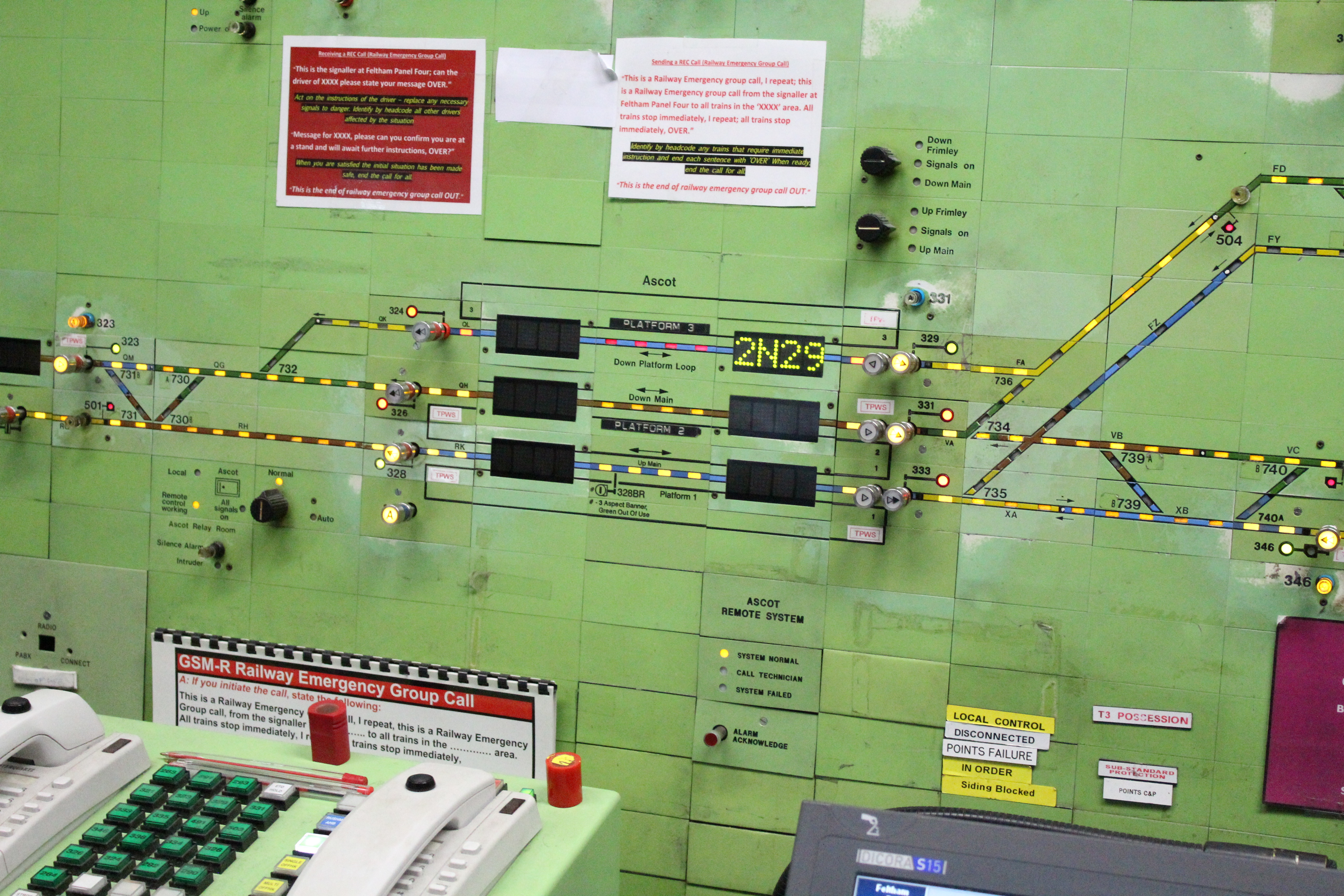

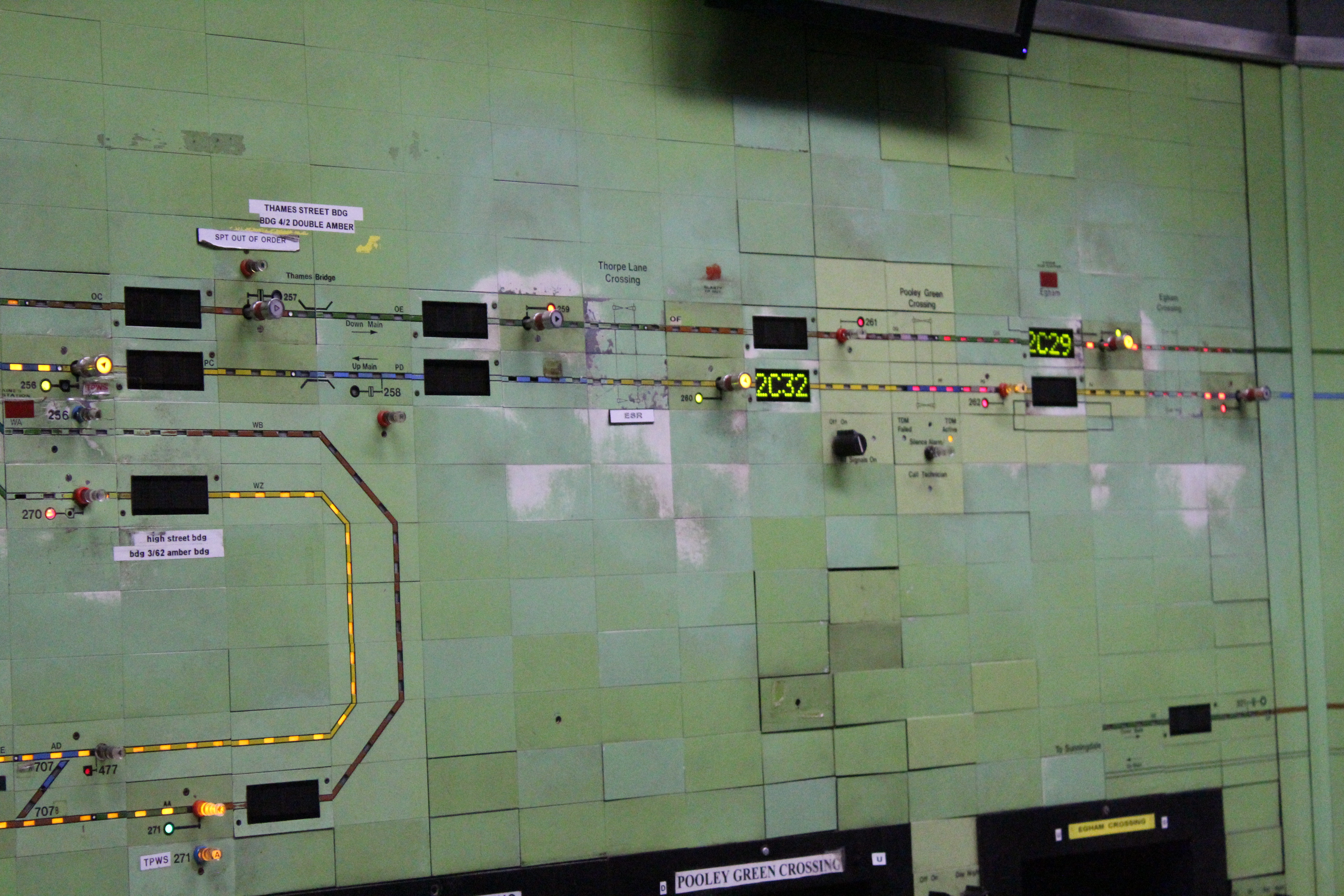

308 posts 		And more.
Post has attachments. Log in to view them.
Log in to reply
The following user said thank you: whitetigger
The Real Feltham Panel 28/04/2020 at 16:11 #126403
i26
Avatar

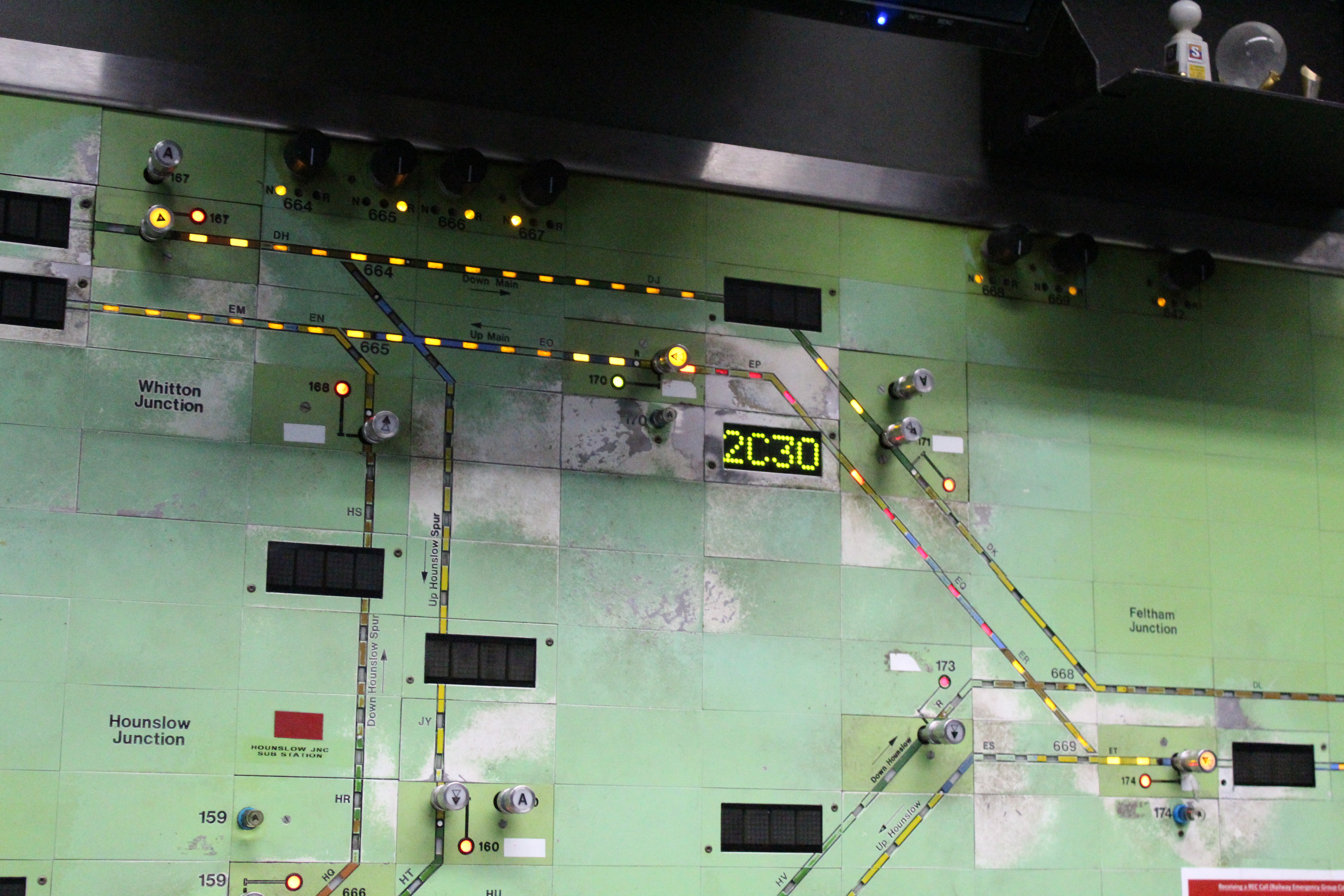

308 posts 		Final one I promise.
Post has attachments. Log in to view them.
Last edited: 28/04/2020 at 16:11 by i26
Reason: None given
Log in to reply
The following users said thank you: tynie123, Stephen Fulcher, whitetigger
