| Racecourse line, Melbourne, Victoria 03/11/2021 at 00:03 #142165 | |
Anothersignalman
96 posts |

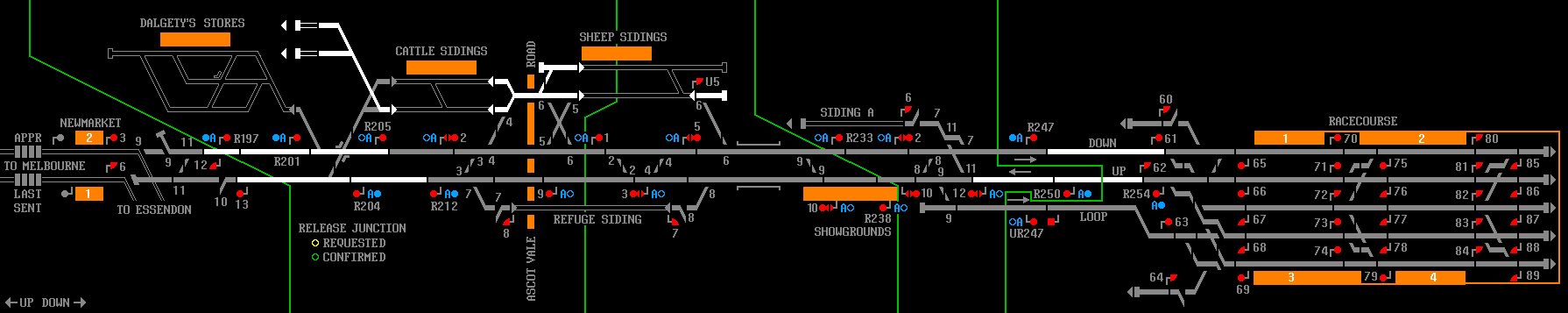

This is a concept for the Showgrounds and Flemington Racecourse line in Melbourne's inner north-western suburbs. Note it is not an accurate simulation of any point in time, but rather takes what I consider the most interesting aspects of various eras and throws them all together. I've also renumbered a lot of the signals and points to make operating the panel easier; aside from the numbering they could also have single-letter prefixes. Trains could operate up to every 2-4 minutes if required, and passenger trains would be allocated to specific terminating platforms. Block livestock trains can arrive either loco-hauled from Newmarket post 3, or shunting back from post 6 via points 11. Source diagrams: 1915 1935 1965 1986 Showgrounds Junction Box Rostrum Epsom Road Flemington Racecourse History of branchline up to 1996 - PDF Optional extras, if speed signalling can be introduced: 1918 1969 Kensington Essendon History of mainline up to 1996 - PDF Note that without speed signalling, a permanent speed restriction of 25mph over the Newmarket region should be sufficient.  Post has attachments. Log in to view them. Log in to reply The following user said thank you: Newhampshires |
