Bug when cancelling WW106

You are here: Home > Forum > Simulations > Released > Wigan Wallgate > Bug when cancelling WW106

Page 1 of 1

Bug when cancelling WW106 09/01/2021 at 19:53 #136157
danners430
Avatar
135 posts

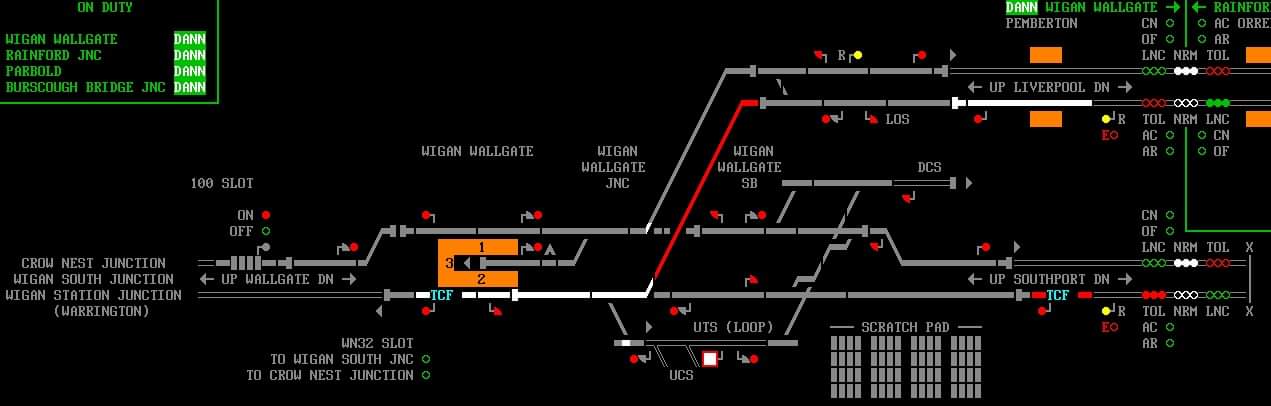

Just discovered a minor bug in Wigan Wallgate - if a train is approaching WW106, but hasn't yet reached the LOS, cancelling WW106 (which hadn't yet cleared due to a TCF) unlocked the overlap - I was able to swing the points in the overlap. Screenshot attached, and Andy has a save.


Post has attachments. Log in to view them.
Log in to reply
Bug when cancelling WW106 09/01/2021 at 19:56 #136158
andyallen4014
Avatar
371 posts
Attached is the aforementioned save
Post has attachments. Log in to view them.
User | Multiplayer Host | Timetable Writer
Log in to reply
Bug when cancelling WW106 09/01/2021 at 20:00 #136159
danners430
Avatar
135 posts

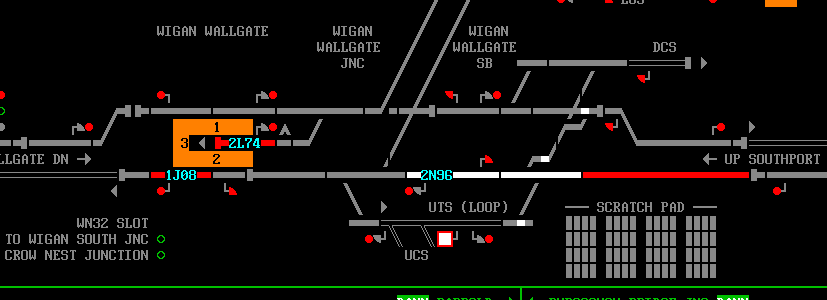

Additional screenshot showing the state of the TCFs - they cleared right as the save was made I do believe


Post has attachments. Log in to view them.
Log in to reply
Bug when cancelling WW106 09/01/2021 at 20:06 #136160
headshot119
Avatar
4869 posts
I've tried to replicate this in a fresh session and haven't been able to.

The save game hasn't helped narrow it down as 6E26 is already at a stand at WW106 and the overlap has timed off.

Is an earlier save game available which shows the problem with the train not yet at a stand at the signal?

"Passengers for New Lane, should be seated in the rear coach of the train " - Opinions are my own and not those of my employer
Log in to reply
Bug when cancelling WW106 09/01/2021 at 20:14 #136162
danners430
Avatar
135 posts
Just FYI, same thing happened at WW144 - Main route set from WW146, set a main route into P2 in the expectation that 1J08 would depart. When I didn't get the slot, I cancelled the route towards Wigan NW and cancelled WW144 in order to reset it as a subsidiary route into P2 behind 1J08. The overlap was cancelled here too.


Post has attachments. Log in to view them.
Log in to reply
Bug when cancelling WW106 09/01/2021 at 20:17 #136163
danners430
Avatar
135 posts
headshot119 in post 136160 said:
I've tried to replicate this in a fresh session and haven't been able to.

The save game hasn't helped narrow it down as 6E26 is already at a stand at WW106 and the overlap has timed off.

Is an earlier save game available which shows the problem with the train not yet at a stand at the signal?
My apologies, I'll see if I can replicate the situation manually tomorrow in a singleplayer game

Log in to reply
Bug when cancelling WW106 09/01/2021 at 20:18 #136164
andyallen4014
Avatar
371 posts
The only earlier save is the 10:00hrs snapshot, which i've attached although this may be too much earlier.
Post has attachments. Log in to view them.
User | Multiplayer Host | Timetable Writer
Log in to reply
Bug when cancelling WW106 09/01/2021 at 21:30 #136167
danners430
Avatar
135 posts
Sorry Karl, I managed to re-create it again with Andy watching (technical support not watching etc.) Andy I believe has a snapshot from immediately before I did the following:

Steps to re-create:

1. Overset the route from WW146 to WW144 (even though 1J10 is still stood there)
2. Set a route from WW144 to WW104 (P2) for 1J10 (assuming P2 is empty)
3. The overlap for WW144 has two separate track circuits - as soon as 1J10 clears the first of these track circuits, the TORR on WW144 operates, but as the overlap is not yet clear WW146 does not yet clear. As soon as the TORR on W144 operates, immediately overset the route into P2.
4. Allow 1J12 to draw forwards past WW146.
5. As soon as 1J12 clears the overlap of WW146 and the TORR operates, cancel WW144's route into P2 - the overlap should cancel with it.


Post has attachments. Log in to view them.
Log in to reply
Bug when cancelling WW106 09/01/2021 at 21:35 #136168
headshot119
Avatar
4869 posts
If Andy could upload that snapshot I'll take a look in the morning. Thanks for both of your help with this.
"Passengers for New Lane, should be seated in the rear coach of the train " - Opinions are my own and not those of my employer
Log in to reply
The following user said thank you: danners430
Bug when cancelling WW106 09/01/2021 at 22:39 #136171
andyallen4014
Avatar
371 posts
This should be the requisite save.
Post has attachments. Log in to view them.
User | Multiplayer Host | Timetable Writer
Log in to reply
The following user said thank you: headshot119
Bug when cancelling WW106 10/01/2021 at 01:34 #136172
headshot119
Avatar
4869 posts
Just an update, Mantis 32769 has been raised following my findings being independently verified, for the moment it looks like it'll need a loader update rather than a simulation one.
"Passengers for New Lane, should be seated in the rear coach of the train " - Opinions are my own and not those of my employer
Log in to reply
The following users said thank you: andyallen4014, danners430
