| West Hampstead PSB 06/12/2012 at 12:22 #38788 | |
jimgos2005
129 posts |
When and why has the above lost signal control of Farringdon Station as I was there tuesday night and the signals are now controlled by Victoria with a VC ID plate.
Log in to reply |
| West Hampstead PSB 06/12/2012 at 22:41 #38832 | |
|
Copping
95 posts |
I could be wrong but I have a feeling its something to do with the Moorgate branch disappearing and Victoria gaining an extra signal. The change over point between West Hampstead and Victoria was Snow Hill tunnel. West Hampstead also controlled the Moorgate branch when it was opened.
Last edited: 06/12/2012 at 22:42 by Copping Log in to reply |
| West Hampstead PSB 07/12/2012 at 10:30 #38847 | |
|
jimgos2005
129 posts |
Thanks I was aware of that I thought it was something to do with the new south eastern services between Kentish Town and Sevenoaks thanks for the comments
Log in to reply |
| West Hampstead PSB 07/12/2012 at 11:47 #38854 | |
|
Copping
95 posts |
South Eastern used to terminate at Blackfriars but during the rebuilding of the station it was easier to carry on to Kentish Town.
Log in to reply |
| West Hampstead PSB 22/12/2012 at 21:42 #39550 | |
|
MrBitsy
121 posts |
Victoria gained Farringdon to keep the third rail section in one PSB.
TVSC Link 4 signaller - Temple Meads, Bath & Stoke Gifford Log in to reply The following user said thank you: jimgos2005 |
| West Hampstead PSB 07/01/2013 at 19:24 #40318 | |
|
obstruction danger
1 posts |
Farringdon station is now controlled from 2 boxes. Anything heading north is under West Hampstead box on a WESTCAD work station which controls the signals at the north end of the station and anything going south is controlled from WESTCAD work stations at Victoria ASC which controls the signals at the south end. It was all to do with the Thameslink project.
Last edited: 07/01/2013 at 19:27 by obstruction danger Log in to reply |
| West Hampstead PSB 07/01/2013 at 21:51 #40321 | |
GeoffM
6376 posts |

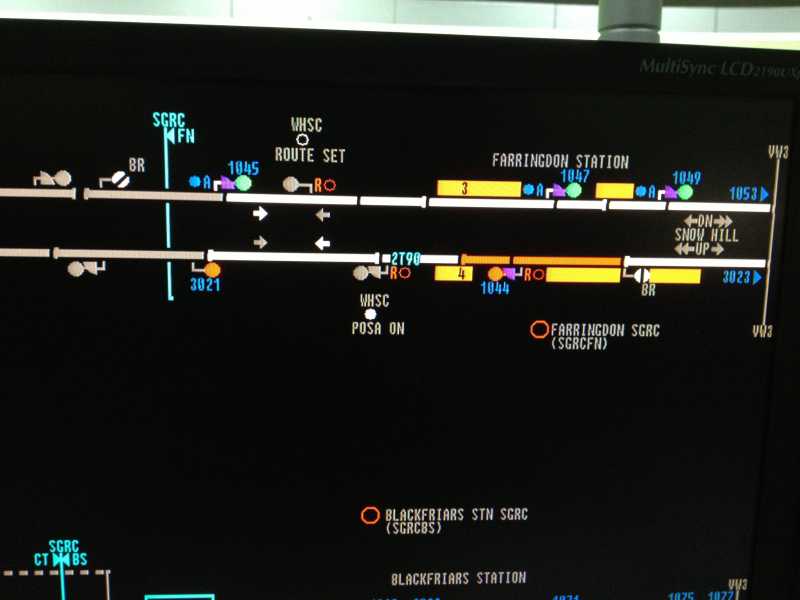

Westcad overview (in West Hampstead):
Post has attachments. Log in to view them. SimSig Boss Last edited: 07/01/2013 at 21:51 by GeoffM Log in to reply |
| West Hampstead PSB 07/01/2013 at 23:40 #40325 | |
|
Lagertoe
61 posts |
How old is this photo Geoff? as all Victoria's signals have had four digits since April 2012
Log in to reply |
| West Hampstead PSB 08/01/2013 at 00:17 #40326 | |
|
GeoffM
6376 posts |
" said:How old is this photo Geoff? as all Victoria's signals have had four digits since April 2012Older than that! Assuming the date on my camera was correct, it was March 2011. SimSig Boss Log in to reply |
| West Hampstead PSB 09/01/2013 at 19:33 #40364 | |
|
mfcooper
707 posts |

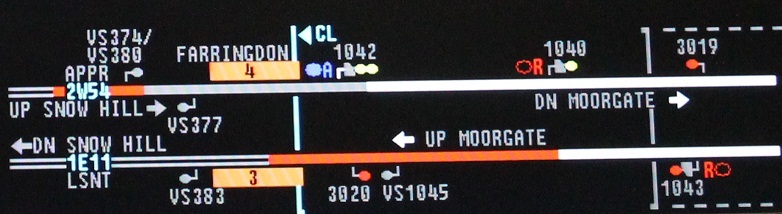

And here is a photo from the Victoria "Panel 6" side from this morning... Notice that Southbound (left to right, upper line) Victoria controls the home signal southwards, and Northbound (right to left, lower line) Victoria controls up to the mid-platform signal, and West Hampstead controls the platform starter. Post has attachments. Log in to view them. Last edited: 09/01/2013 at 19:35 by mfcooper Log in to reply The following users said thank you: Lagertoe, ajax103 |
