| Banavie 22/03/2021 at 17:44 #138048 | |
immense86
5 posts |
The West Highland Line has a special place in my heart for reasons I won't go into but I would love to see Banavie Signalling Centre comprising of the north and south workstations as well as the 30 lever Fort William Junction S.B. It would be completely unique as it mostly runs on RETB and as it hasn't change much since the late 80s many different WTTs could be implemented. I would be happy to even have a go at coding such a thing (although it's been about 15 years since I did any coding
Log in to reply |
| Banavie 22/03/2021 at 20:15 #138053 | |
elltrain3
372 posts |
I'd be willing to take some time to design a mock-up if I could find Fort William's Diagram! but think it's sady been said before that in SimSig it'd be mainly sitting on phones (just like the real banavie SCC) but I'd try it if it came! (It's amazing how hard it is to find ANY interior shots of fort William SB, (Banavie is easier but still hard) they have done very well to hide from the camera all these years!) Resident Mock Maker! / "The Out Of Control Host" Last edited: 22/03/2021 at 21:44 by elltrain3 Reason: None given Log in to reply |
| Banavie 22/03/2021 at 22:06 #138056 | |
|
bill_gensheet
1413 posts |
Try https://www.rmweb.co.uk/community/index.php?/topic/139525-fort-william-old-signalling/ for the old layout, and old station Also bear in mind that 'Fort William Jn' is quite a new name, it was 'Mallaig Jn' until quite recently. As for the 'new' station, might be simple enough to determine from images ? A starter from me http://www.gensheet.co.uk/photo2L/FTW_20_ETHEL_1985-07-15.jpg Log in to reply |
| Banavie 23/03/2021 at 17:15 #138062 | |
|
peterb
452 posts |
+1
Log in to reply |
| Banavie 23/03/2021 at 20:21 #138068 | |
postal
5265 posts |
immense86 in post 138048 said:The West Highland Line has a special place in my heart for reasons I won't go into but I would love to see Banavie Signalling Centre comprising of the north and south workstations as well as the 30 lever Fort William Junction S.B. It would be completely unique as it mostly runs on RETB and as it hasn't change much since the late 80s many different WTTs could be implemented. I would be happy to even have a go at coding such a thing (although it's been about 15 years since I did any codingThis is a suggestion that has cropped up a number of times over the years (most recently as far as I can find in 2015 at https://www.SimSig.co.uk/Forum/ThreadView/40389?postId=76890). While there may be lots of complexity in the creation of the simulation, there would be very little to do in an operating sense if modelled on prototypical timetables. At the Fort William end of the line a dozen trains in a 24 hour period would be a very busy day with only two real decisions for the signaller (about where The Jacobite and the service train should cross). Even if the whole of the area through to Helensburgh Upper (including the Oban line from Crianlarich) were included there would still be little to keep the SimSig signaller occupied. A beautiful line to travel but I'm not sure it would be a good use of a developer's time as far as SimSig is concerned. “In life, there is always someone out there, who won’t like you, for whatever reason, don’t let the insecurities in their lives affect yours.” – Rashida Rowe Log in to reply The following user said thank you: Meld |
| Banavie 23/03/2021 at 20:47 #138069 | |
|
immense86
5 posts |
Didn't stop someone making Llangollen lol
Log in to reply |
| Banavie 23/03/2021 at 21:25 #138070 | |
jc92
3687 posts |
Didn't Peter previously Suggest that IF the WH was done, it would more than likely end up being pre RETB anyway. immense86 in post 138069 said: Didn't stop someone making Llangollen lolMainly, I imagine as the developer worked there. Now the GC on Gala day on the other hand... "We don't stop camborne wednesdays" Log in to reply |
| Banavie 23/03/2021 at 22:45 #138071 | |
|
elltrain3
372 posts |
I did think of the GCR, started on a mock up somewhere, as the intense service with AB, Bi-Di working, Tokens and sidings galore would be rather a fun challenge, with the option of adding in the Northern Extention when it is eventually finished!
Resident Mock Maker! / "The Out Of Control Host" Log in to reply |
| Banavie 24/03/2021 at 07:24 #138072 | |
Meld
1111 posts |
immense86 in post 138069 said:Didn't stop someone making Llangollen lolNot really funny when you think about it. It was Karls first simulation, to prove he knew what he was doing and capable of. No Llangollen would have meant no other welsh sims for starters. Passed the age to be doing 'Spoon Feeding' !!! Log in to reply The following user said thank you: Stephen Fulcher |
| Banavie 24/03/2021 at 08:20 #138073 | |
|
jc92
3687 posts |
elltrain3 in post 138071 said:I did think of the GCR, started on a mock up somewhere, as the intense service with AB, Bi-Di working, Tokens and sidings galore would be rather a fun challenge, with the option of adding in the Northern Extention when it is eventually finished!Theres no bidirectional signalling. The up main between Swithland and Rothley has a signalled wrong direction shunt movement but that's it, but this is probably a discussion best made on the relevant mockups thread. "We don't stop camborne wednesdays" Log in to reply |
| Banavie 24/03/2021 at 11:10 #138078 | |
|
immense86
5 posts |
jc92 in post 138070 said:Didn't Peter previously Suggest that IF the WH was done, it would more than likely end up being pre RETB anyway.That's also a good shout Log in to reply |
| Banavie 31/03/2021 at 22:58 #138259 | |
|
postal
5265 posts |
At a complete tangent but relevant to Fort William, a clip from the Diary column in The Times this morning: 'Gavin Weightman enters our bad restaurants series with a tale from the sleeper train from Fort William to London. Settling down for dinner, he heard the woman at the next table ask the waiter about the fish of the day. “Does the Mornay sauce have wine in it?” she asked. “Yes,” the waiter said. “The cook breathed on it.” She went for the steak.' “In life, there is always someone out there, who won’t like you, for whatever reason, don’t let the insecurities in their lives affect yours.” – Rashida Rowe Last edited: 31/03/2021 at 22:58 by postal Reason: None given Log in to reply The following users said thank you: JWNoctis, jc92, Soton_Speed |
| Banavie 04/04/2021 at 11:09 #138360 | |
|
Ron_J
331 posts |

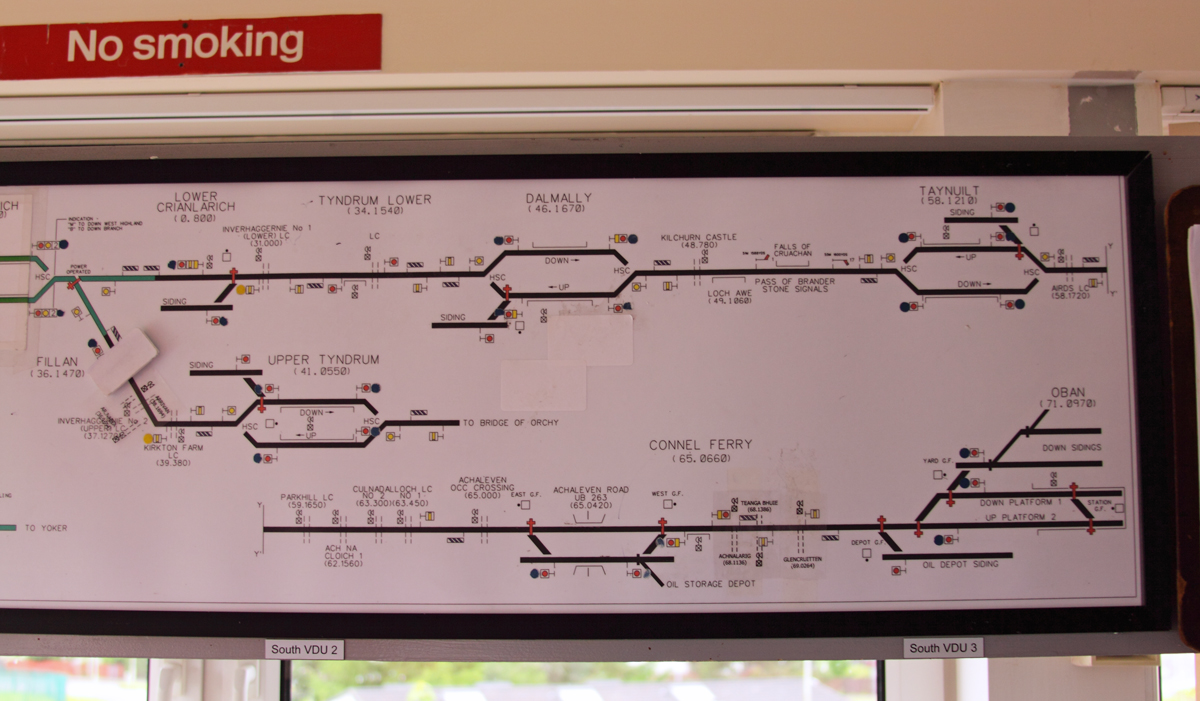

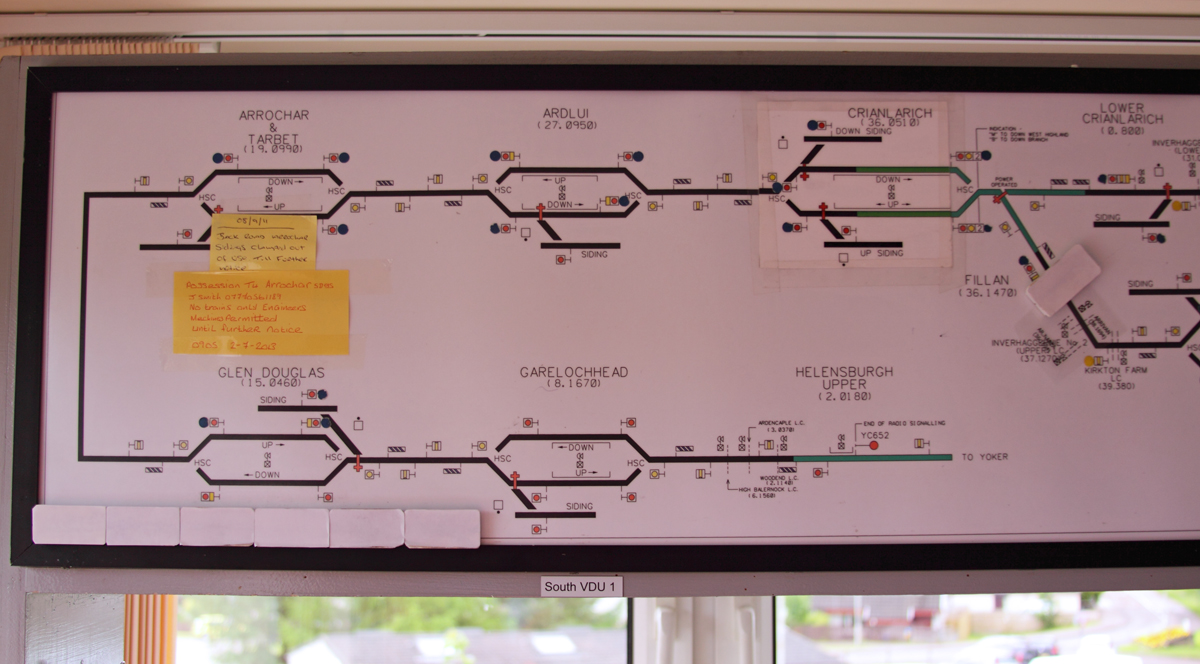

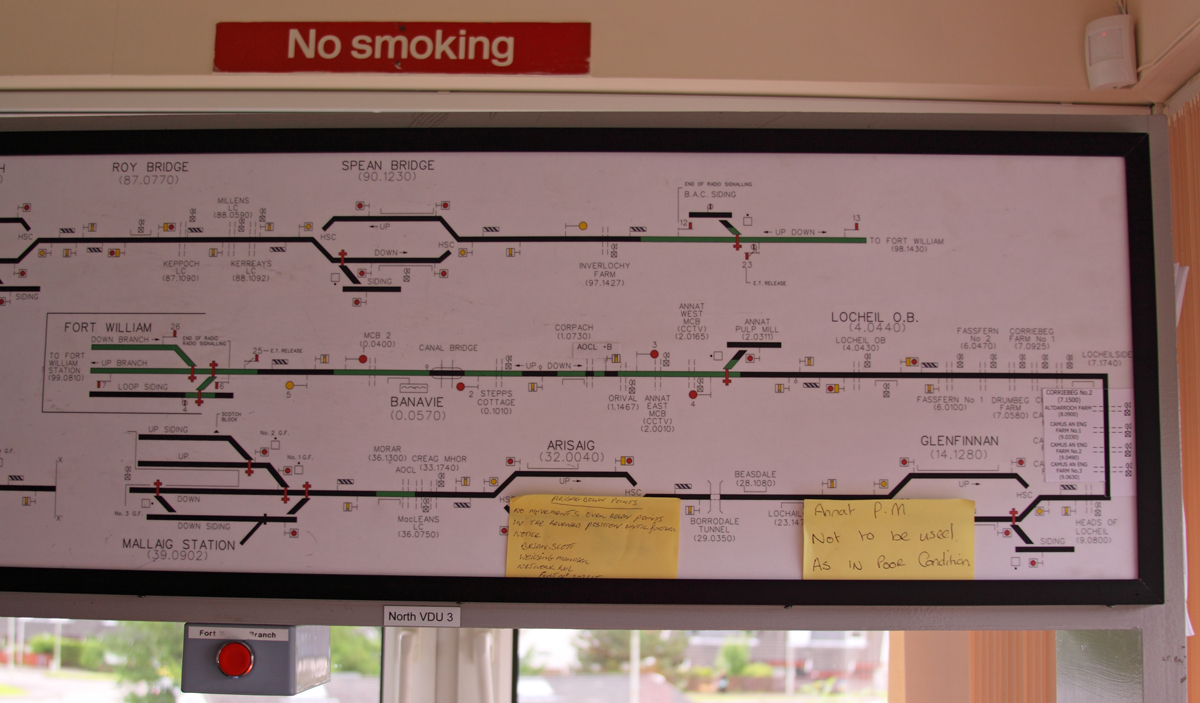

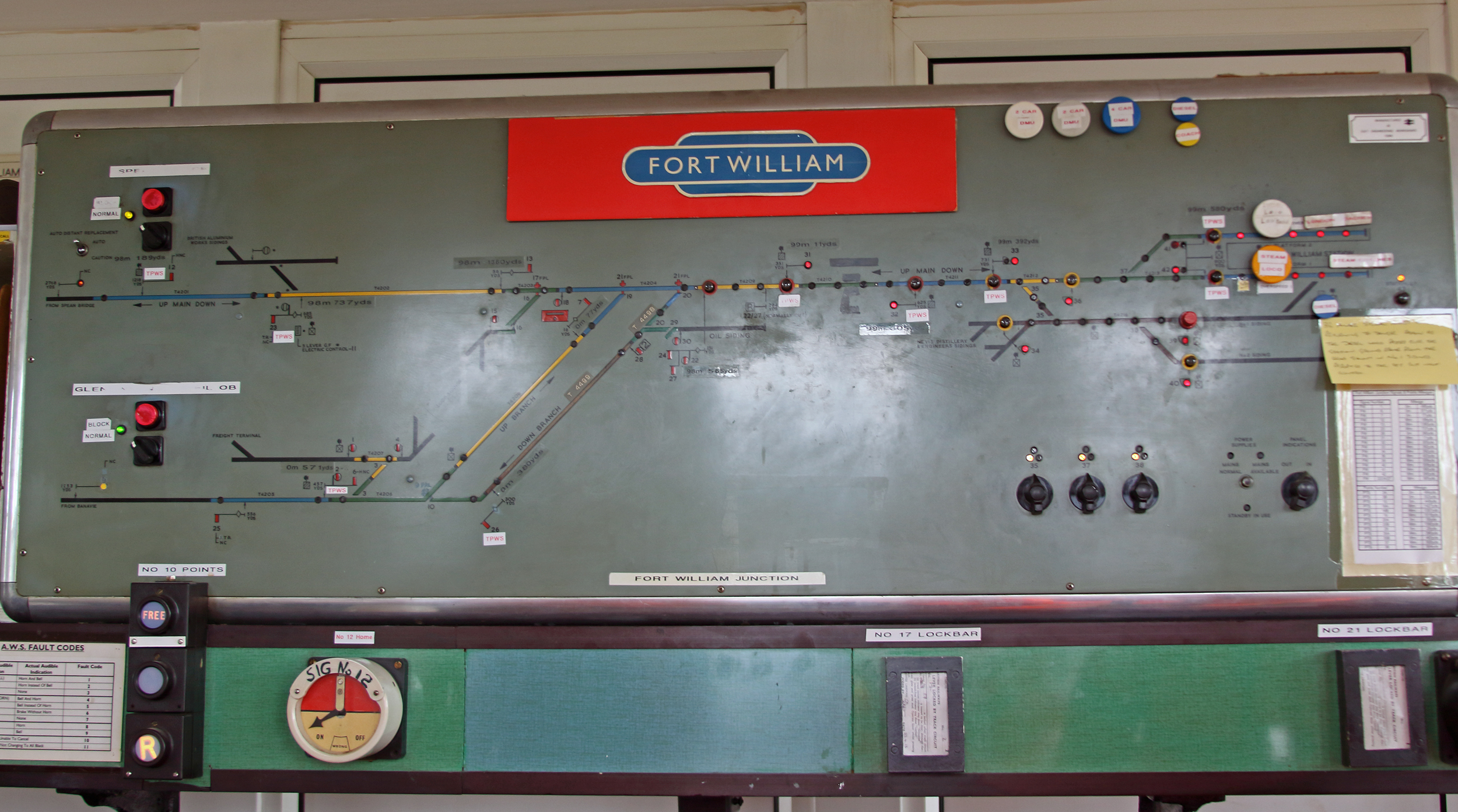

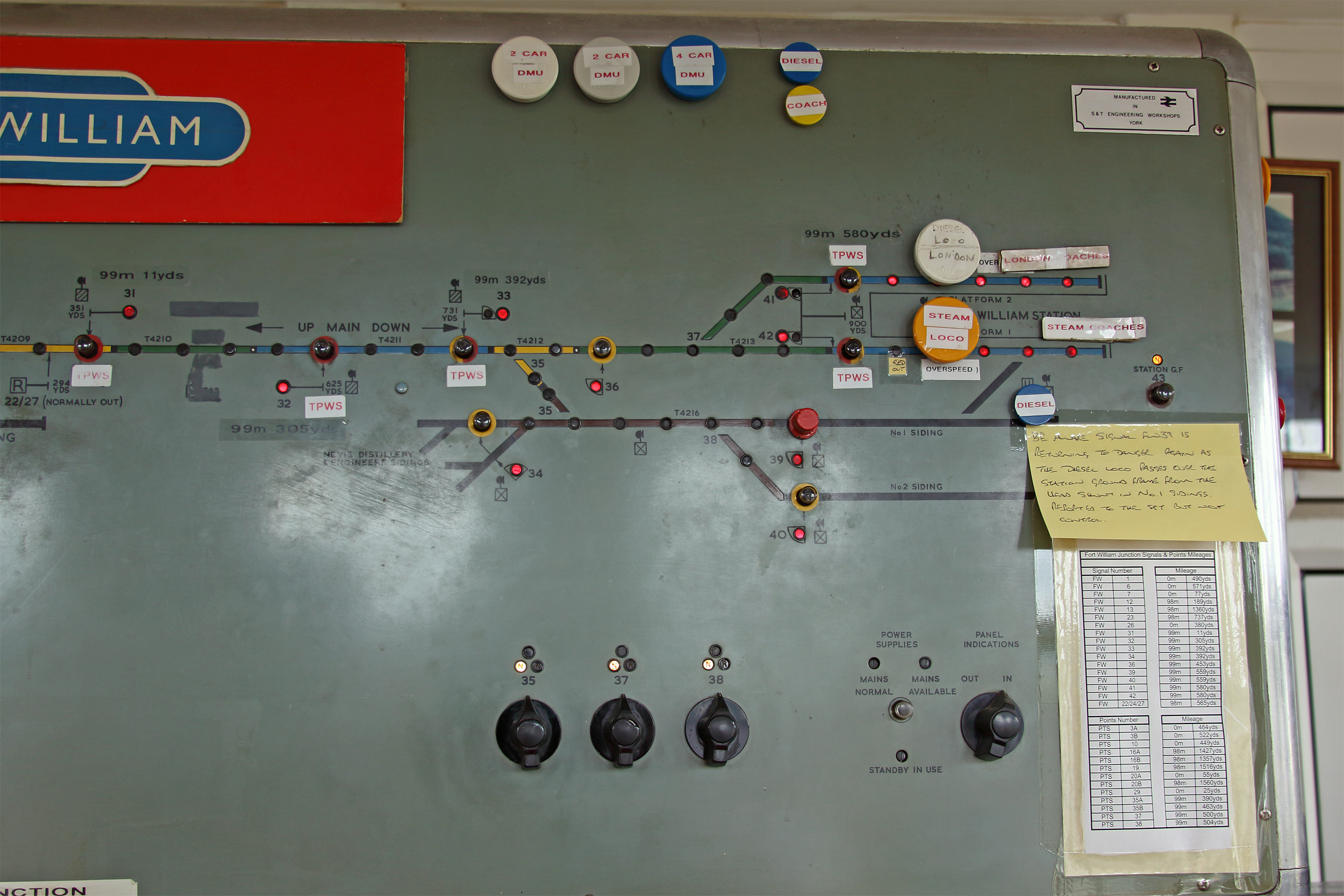

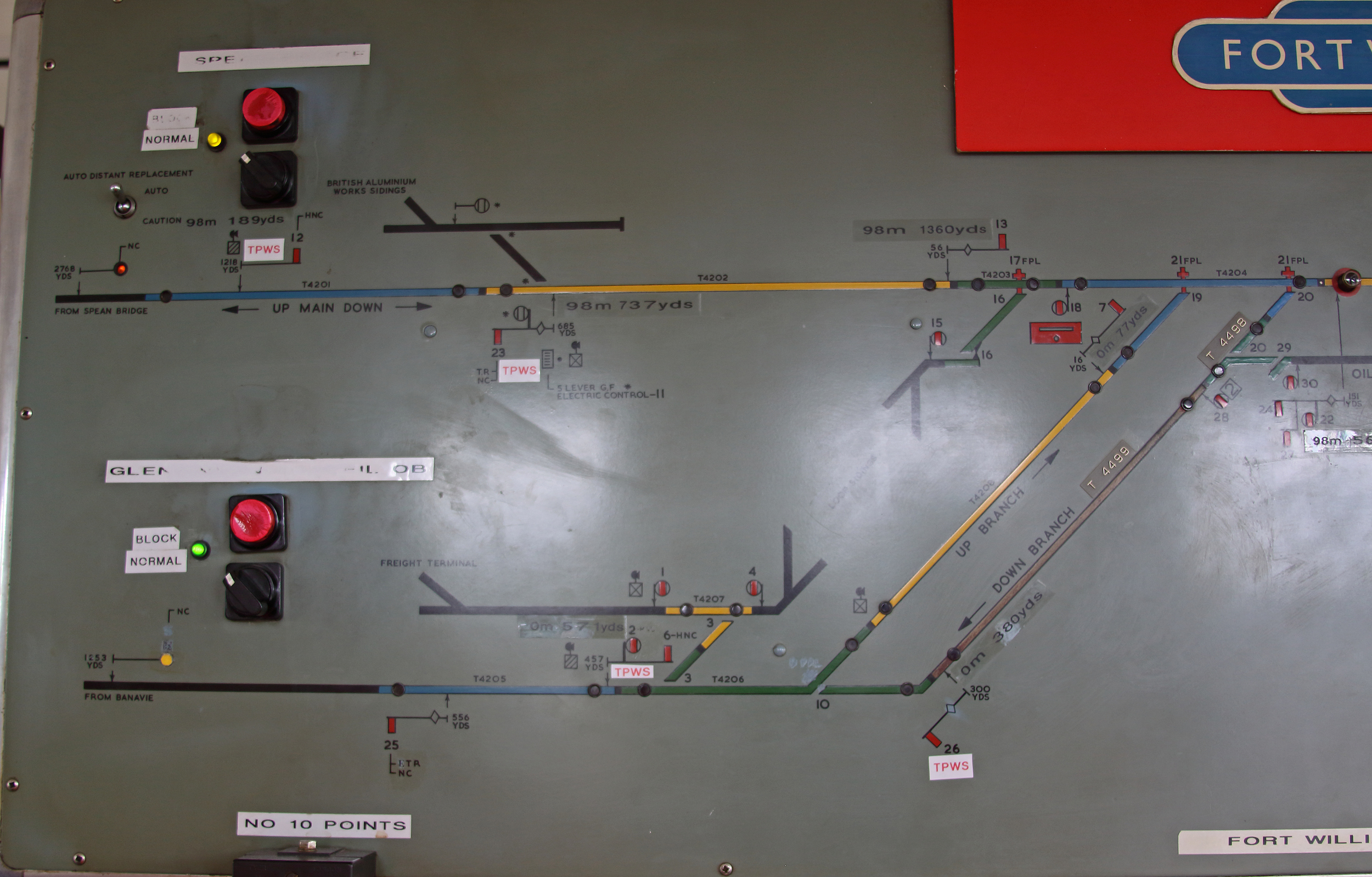

elltrain3 in post 138053 said:I'd be willing to take some time to design a mock-up if I could find Fort William's Diagram! but think it's sady been said before that in SimSig it'd be mainly sitting on phones (just like the real banavie SCC) but I'd try it if it came!Here are some I took in 2013 which I've eventually managed to locate on an external HDD. Not a great camera back then and lots of light reflecting off the diagram but hopefully you can see enough.    Post has attachments. Log in to view them. Log in to reply The following users said thank you: peterb, TUT, whatlep |
| Banavie 04/04/2021 at 11:15 #138363 | |
|
elltrain3
372 posts |
They are ACE! thank you! i'll save them and when i get chance get them made!
Resident Mock Maker! / "The Out Of Control Host" Log in to reply |
| Banavie 04/04/2021 at 11:16 #138364 | |
|
Ron_J
331 posts |

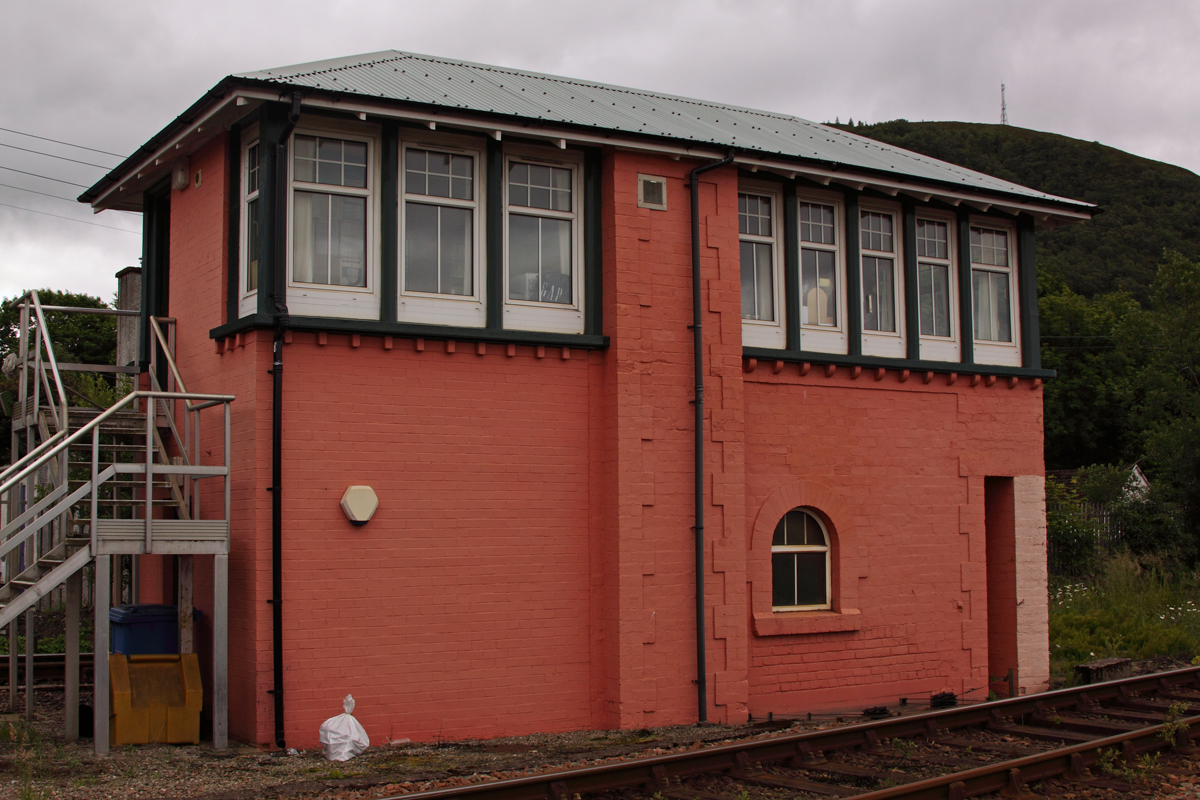

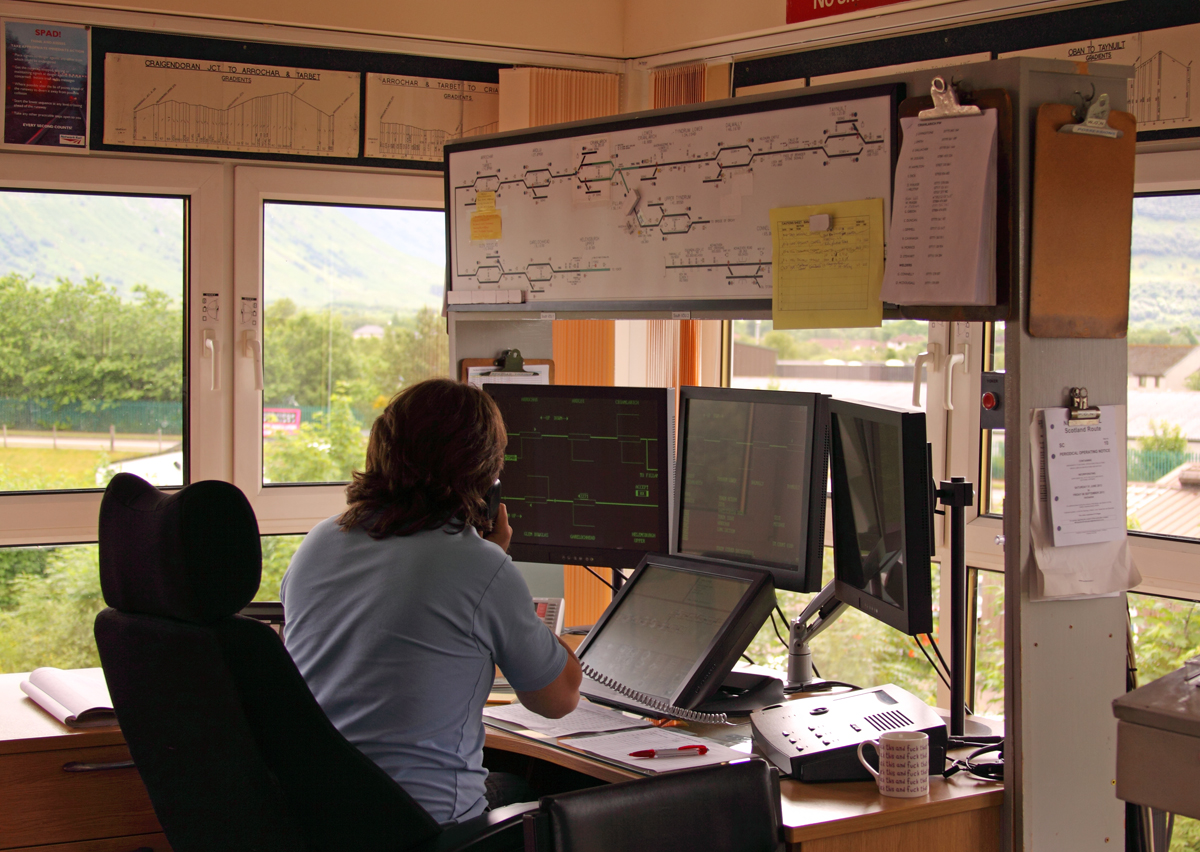

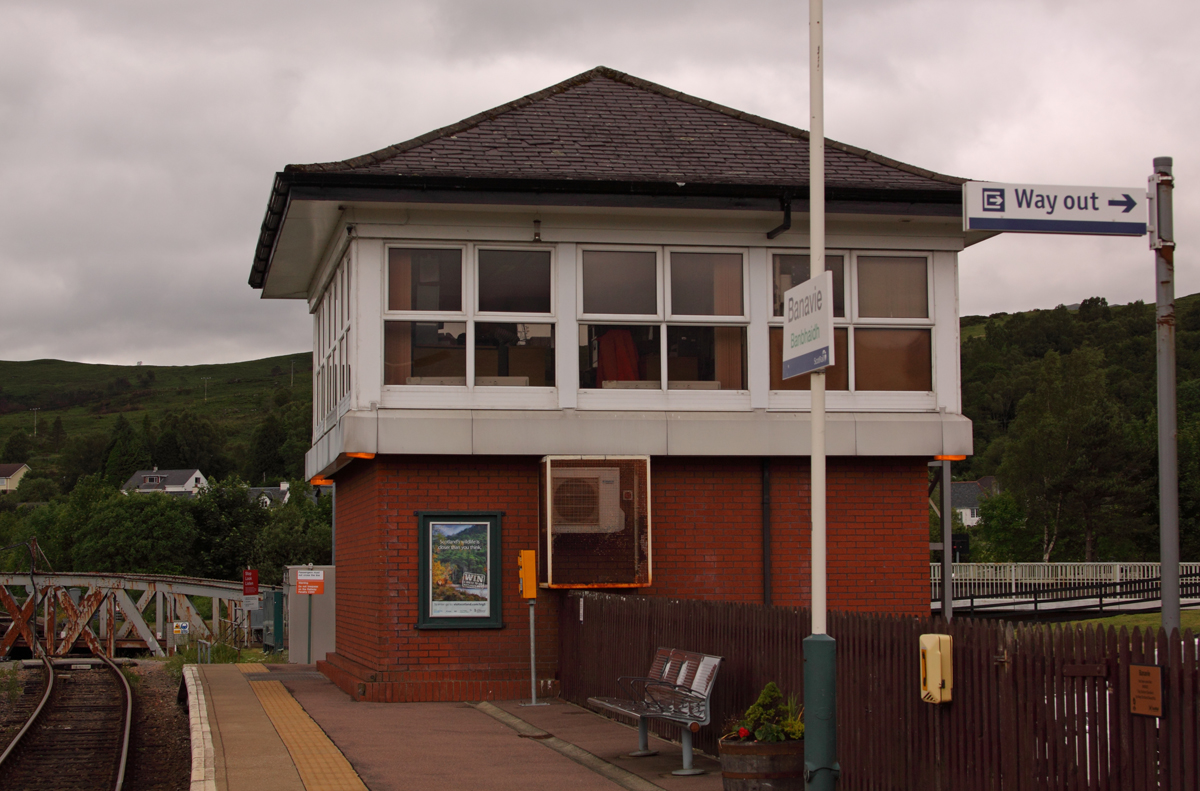

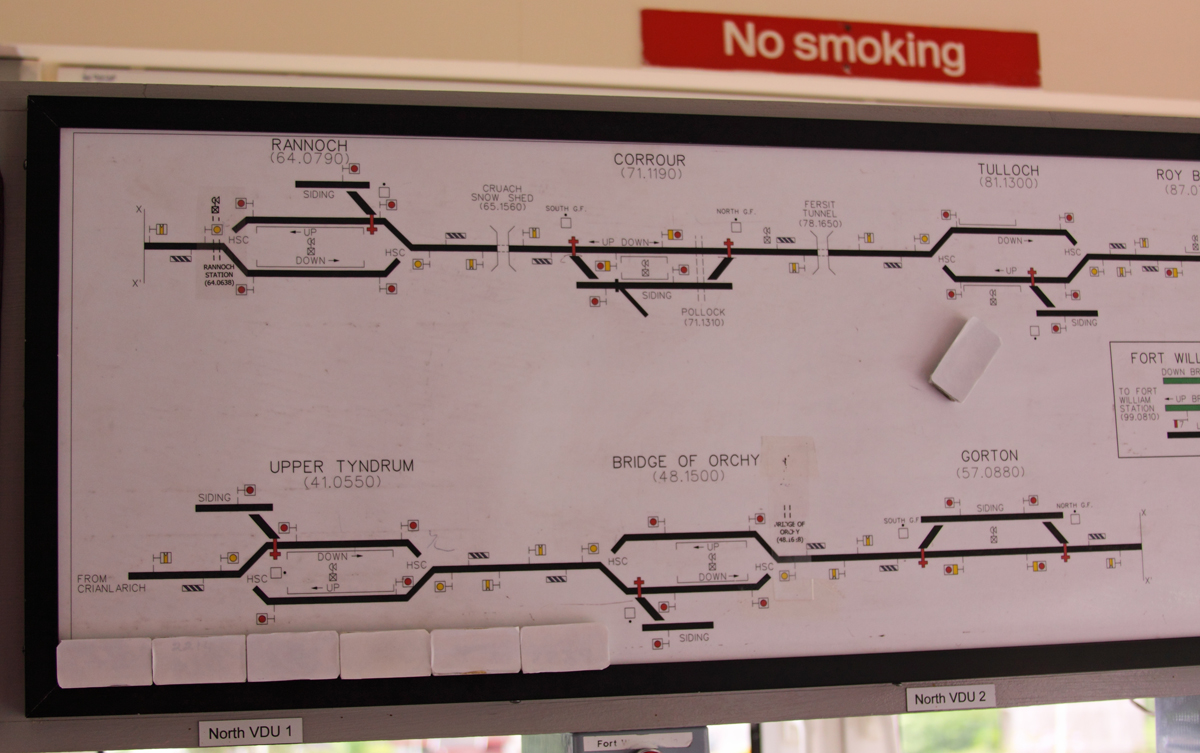

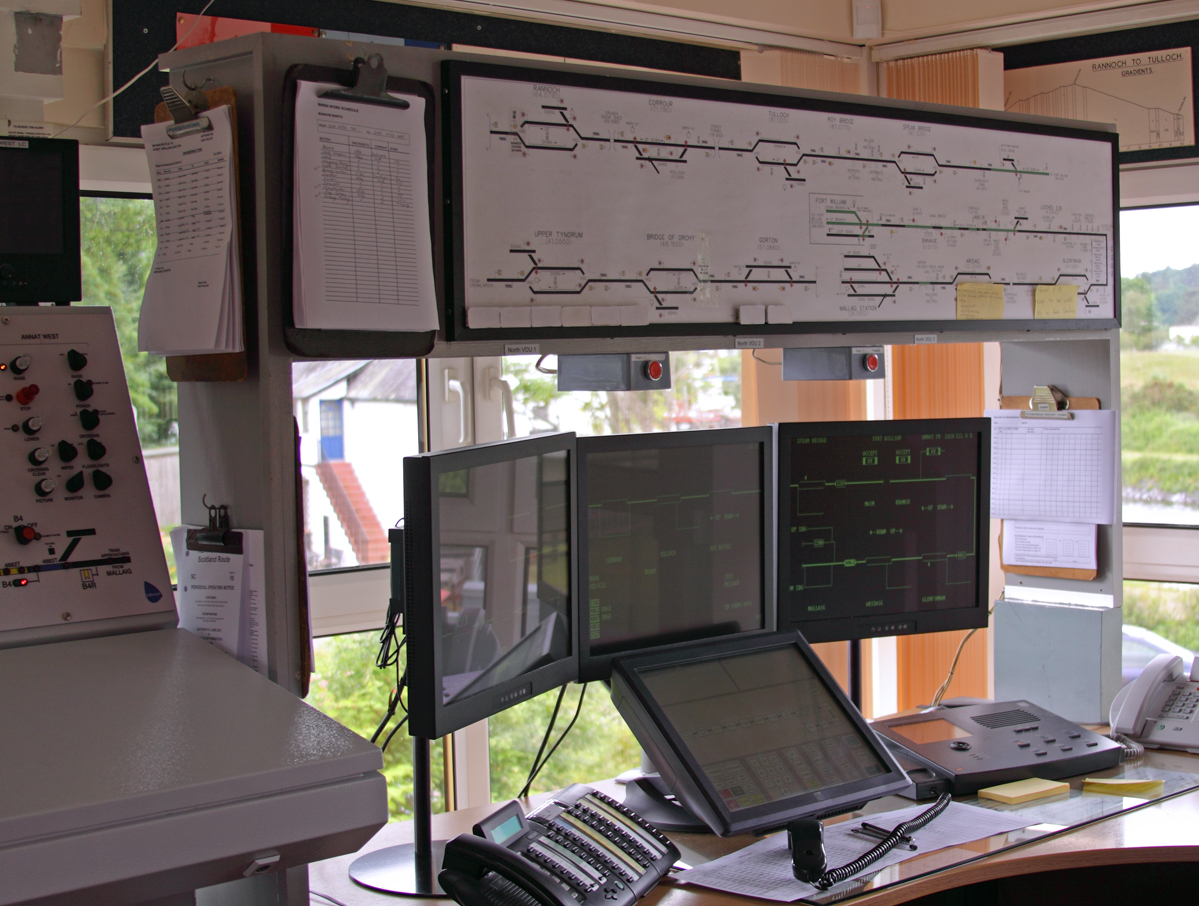

And while we're at it, here's Banavie also in 2013 (pre RETB NG). I've been in there since then but can't find the photos.
Post has attachments. Log in to view them. Last edited: 04/04/2021 at 11:20 by Ron_J Reason: None given Log in to reply The following users said thank you: peterb, DonRiver |
| Banavie 04/04/2021 at 11:17 #138365 | |
|
Ron_J
331 posts |

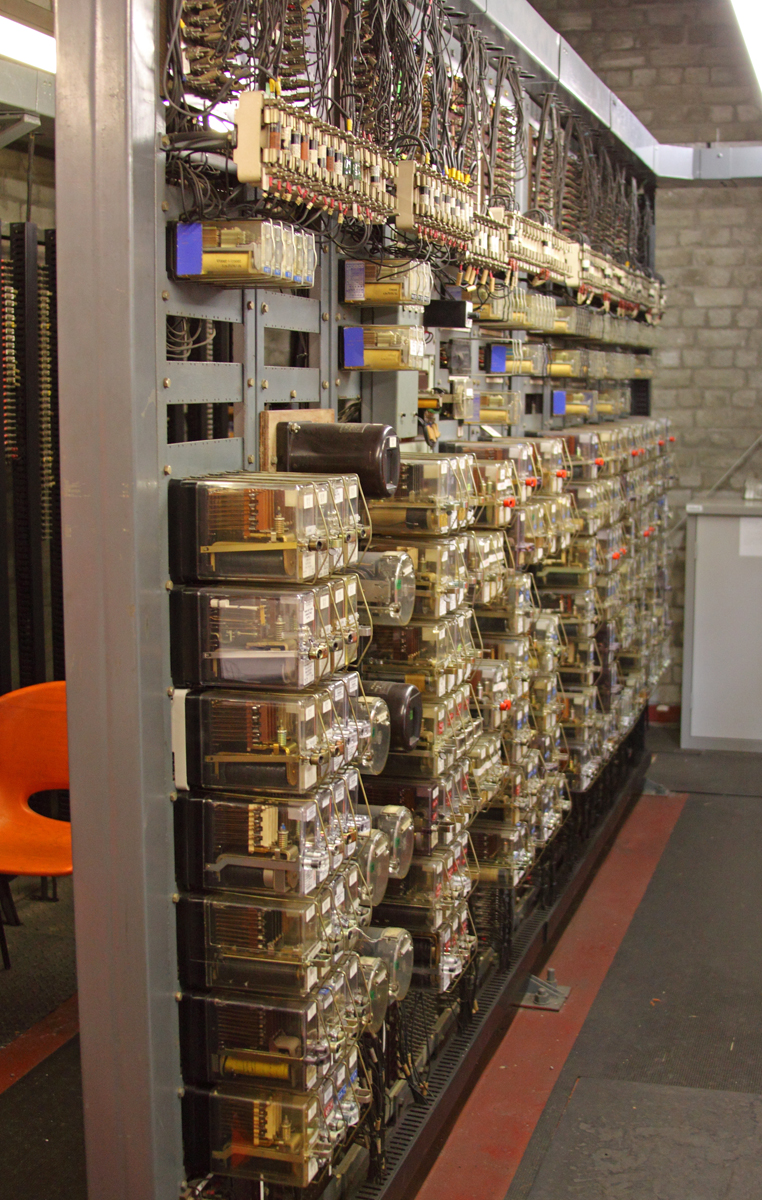

More..   Post has attachments. Log in to view them. Log in to reply The following user said thank you: peterb |
| Banavie 04/04/2021 at 11:17 #138366 | |
|
Ron_J
331 posts |
Last ones.   Post has attachments. Log in to view them. Log in to reply The following user said thank you: peterb |
| Banavie 04/04/2021 at 12:06 #138369 | |
DonRiver
166 posts |

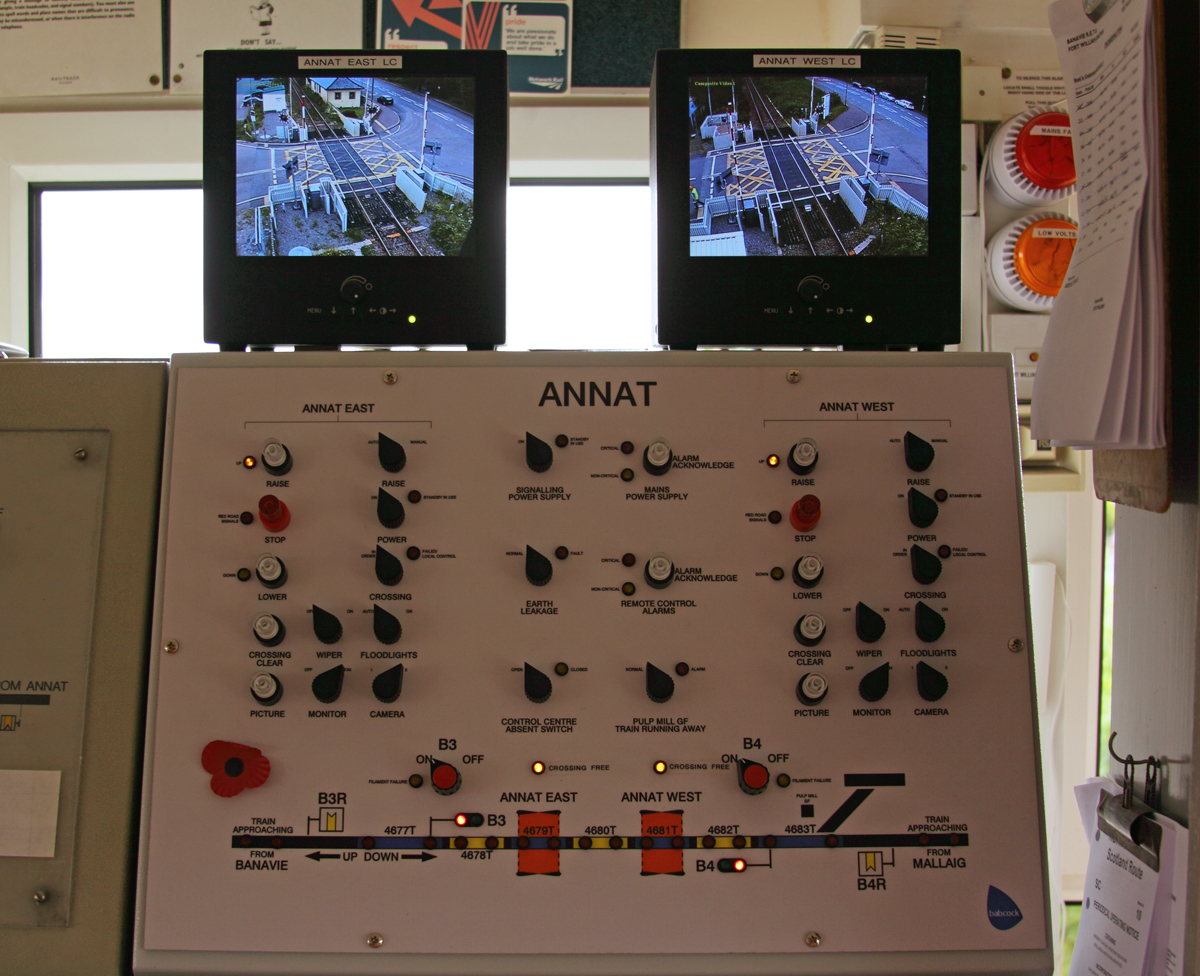

Ron_J in post 138364 said:The "Raise" button has an "Up" light. The "Lower" button has a "Down" light. The "Stop" button has a "Red road lights" light… so does "Stop" turn on the stop lights or does it stop the barriers from moving? (named for the one in Tasmania, not in Russia) Log in to reply |
| Banavie 04/04/2021 at 12:34 #138370 | |
|
Ron_J
331 posts |
The emergency stop button stops the barriers moving. The red road lights indication is not associated with the emergency stop button, it's just laid out next to it. The operating sequence is - 1) Lower button pressed to start sequence, up indication extinguishes 3) Red road lights indication illuminates when red lights start after 3 seconds of amber 4) Down indication illuminates when barriers are proved down Log in to reply The following user said thank you: DonRiver |
| Banavie 05/04/2021 at 22:46 #138415 | |
|
elltrain3
372 posts |

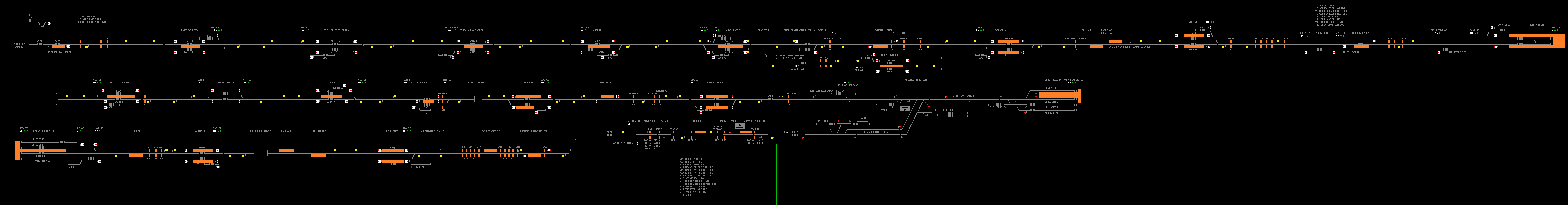

Here is a WHL sim Rob! (i've posted it in my mock-SimSig thread too) Post has attachments. Log in to view them. Resident Mock Maker! / "The Out Of Control Host" Log in to reply The following user said thank you: peterb |
