Crewe Sydney Bridge (Jn)

You are here: Home > Forum > Simulations > Released > Crewe > Crewe Sydney Bridge (Jn)

Page 1 of 1

Crewe Sydney Bridge (Jn) 14/09/2024 at 07:45 #158516
Robyn
Avatar
74 posts
I'm making this post as I have noticed some irregularities with Sydney Bridge Jn (as it was formerly known)
First off, for all eras up to 2005 Crewe Sydney Br was under the control of Sandbach PSB (SH). For trains leaving the station DN this means that the route should set to SH75 control signal, not MS4029. And on the UP, approach signals into Crewe should be SH68 (control), SH73 (control), CE154, etc.

Previous to 2005 there was a set of facing and trailing double-track x-overs between the independents and the 'fast' lines at Sydney Bridge. And there was a GF (later removed) behind SH68 which is that that is also a control signal.

For all intensive purposes, this is just a signal number issue as none of the TCs were changed and none of the track under the control of Crewe PSB was altered. CE154 was almost directly in-front of the facing-end of the UP independent > UP fast x-over at Sydney Bridge. As such when Sandbach closed, the timing point was kept and the times for Sydney Bridge Jn (later Sydney Bridge) was for when the train passed CE154 signal (officially confirmed by a train planner with Northern).
And with the recent alterations it was just renamed to more accurately reflect where the timing point actually was. (I'm suspecting on the DN that Sydney Bridge was timed for passing MS4029, but I have no official confirmation of this.)

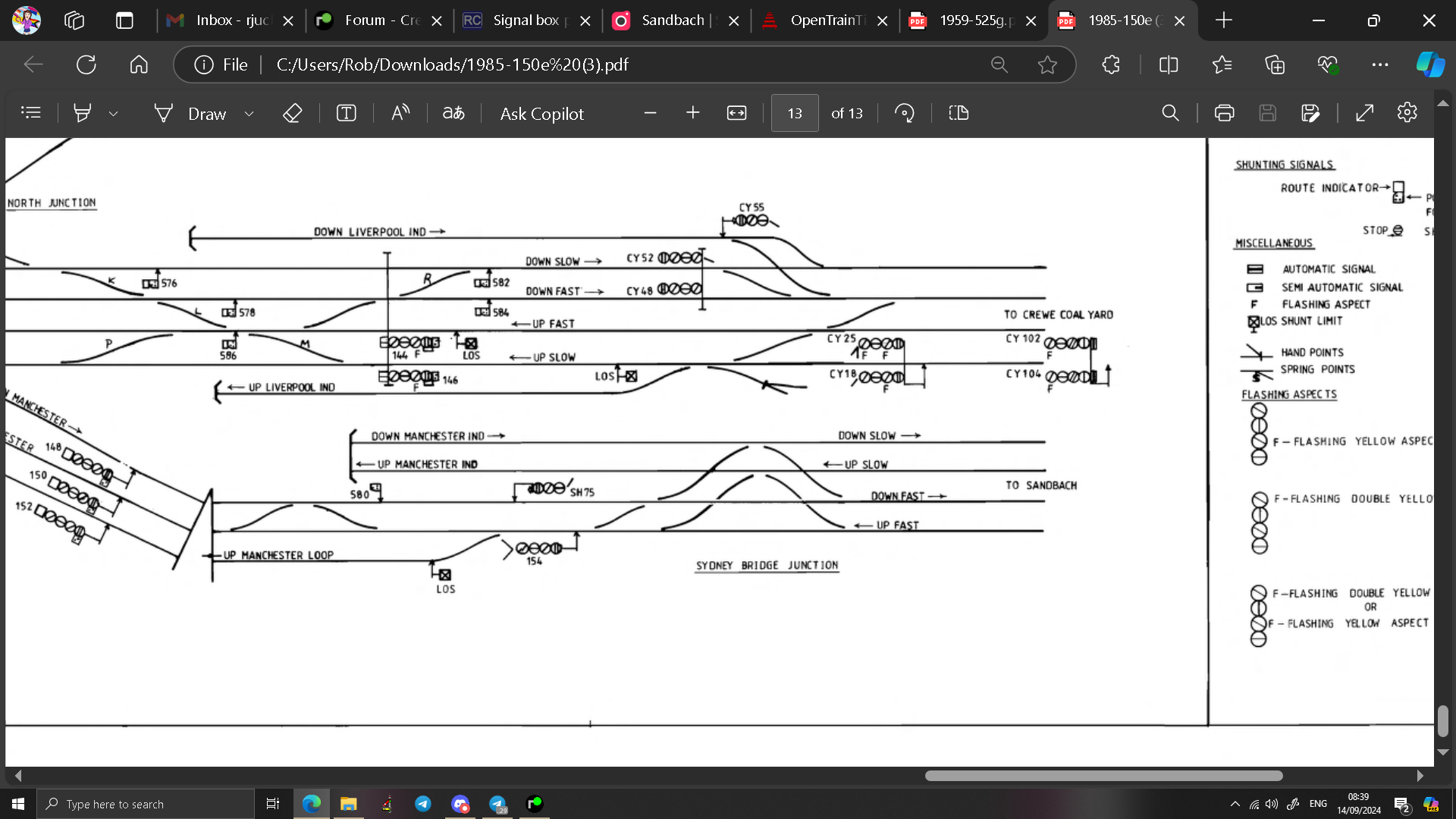

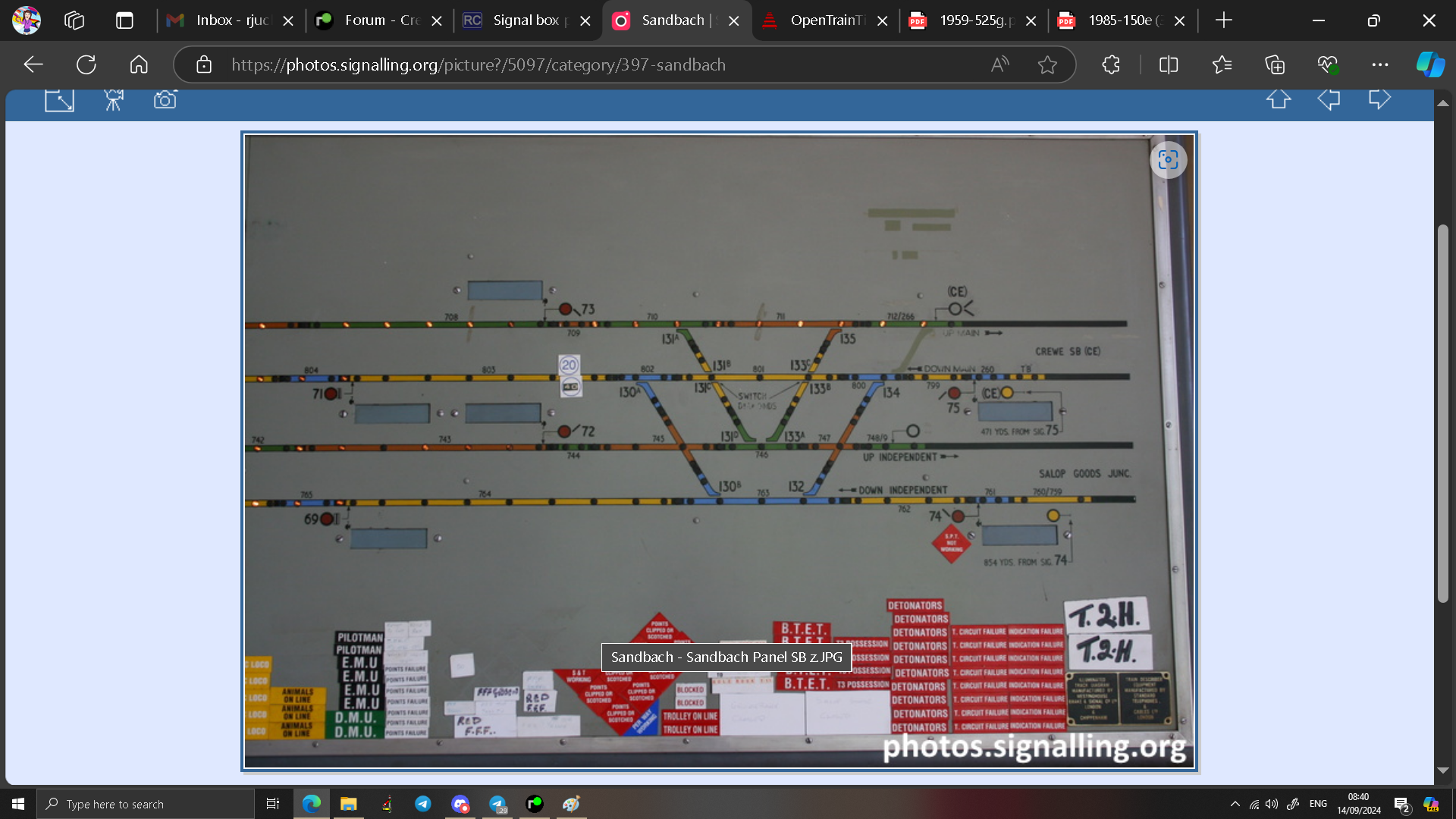

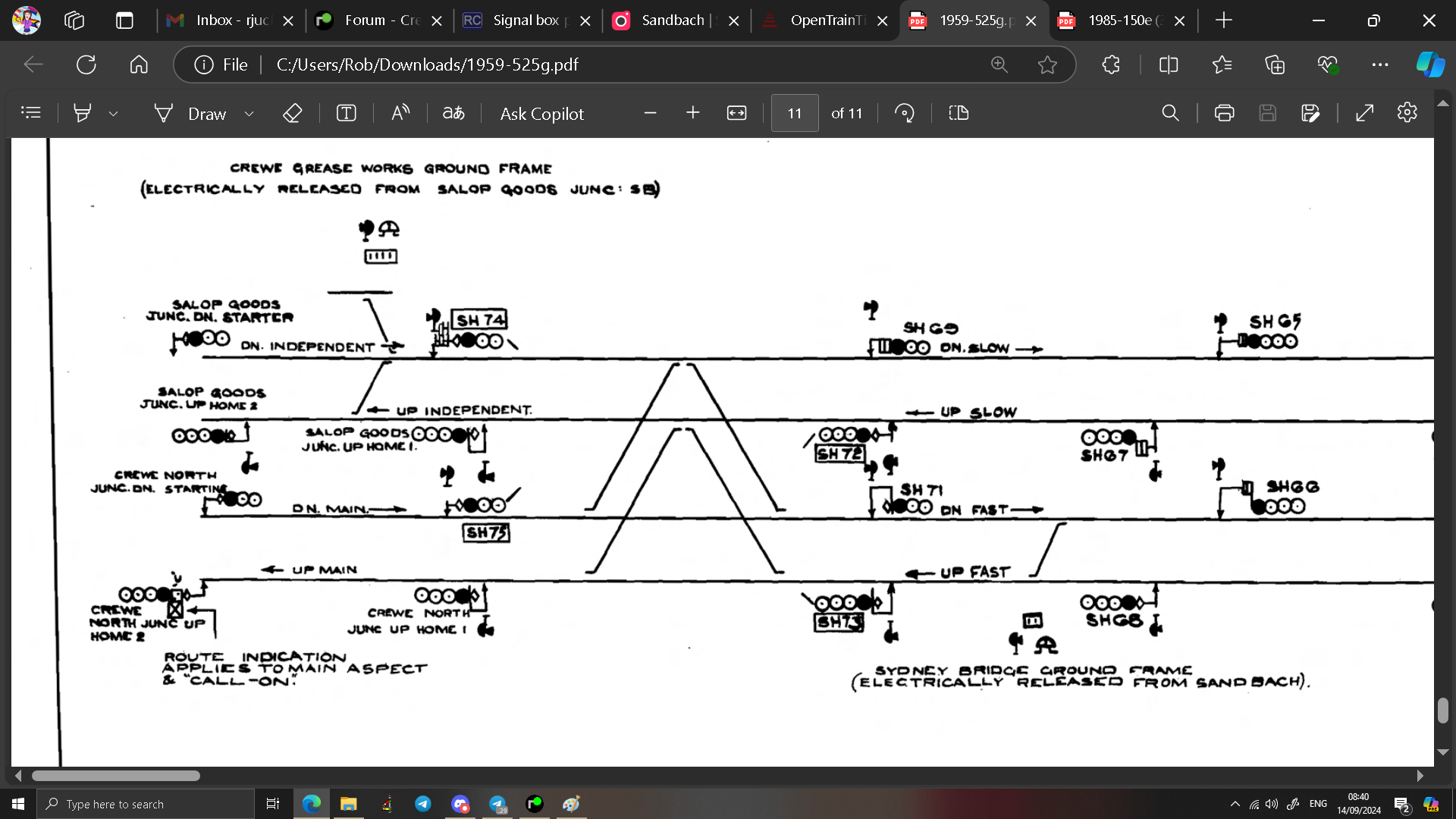

I've included signal number plans from 1959 (opening of Sandbach PSB), 1985 (opening of Crewe PSB) and a screenshot of Sydney Bridge Jn (as it appeared on the diagram) in the early 00s.
Just some things I've noticed and that I think people may find useful!





Post has attachments. Log in to view them.
7-5-5, closing of comment
Last edited: 14/09/2024 at 07:48 by Robyn
Reason: None given

Log in to reply
The following users said thank you: elltrain3, HST125Scorton, KCRCRailway
Crewe Sydney Bridge (Jn) 14/09/2024 at 16:47 #158529
HST125Scorton
Avatar
1186 posts
Online
Thanks this detailed bit of information. I totally forgot about the double cross overs that used to be there!, same with Sandbach PSB.
Aaron (AJRO) | Timetable Writer
Log in to reply
Crewe Sydney Bridge (Jn) 15/09/2024 at 20:30 #158547
Robyn
Avatar
74 posts
HST125Scorton in post 158529 said:
Thanks this detailed bit of information. I totally forgot about the double cross overs that used to be there!, same with Sandbach PSB.
You're welcome! I'm a volunteer at Crewe North Jn signal box so we know Sandbach PSB very well haha as it was our Manchester neighbour until 1985!

7-5-5, closing of comment
Log in to reply
The following user said thank you: HST125Scorton
Crewe Sydney Bridge (Jn) 15/09/2024 at 21:26 #158549
DaveHarries
Avatar
1285 posts
Thanks for the interesting information. I see from the signalboxes list on the website of Phil Deaves - http://www.railwaycodes.org.uk/signal/signal_boxess.shtm - that for Sandbach he says last train was 11-Dec-2005 but official closure was 11-Mar-2006. My collection of notices (approx. 60 from South Wales, Midlands and western counties) doesn't include anything for that area though so I would be none the wiser as to the Sandbach PSB layout were it not for the diagrams you attached: thank you for sharing them.

Cheers,
Dave

Last edited: 15/09/2024 at 21:34 by DaveHarries
Reason: None given

Log in to reply
Crewe Sydney Bridge (Jn) 16/09/2024 at 14:56 #158560
Robyn
Avatar
74 posts
DaveHarries in post 158549 said:
Thanks for the interesting information. I see from the signalboxes list on the website of Phil Deaves - http://www.railwaycodes.org.uk/signal/signal_boxess.shtm - that for Sandbach he says last train was 11-Dec-2005 but official closure was 11-Mar-2006. My collection of notices (approx. 60 from South Wales, Midlands and western counties) doesn't include anything for that area though so I would be none the wiser as to the Sandbach PSB layout were it not for the diagrams you attached: thank you for sharing them.

Cheers,
Dave
If you would like to learn more the signalling notice is available to download from signalling records society as: BR(M) notice 1959-525g

7-5-5, closing of comment
Log in to reply
The following user said thank you: DaveHarries
